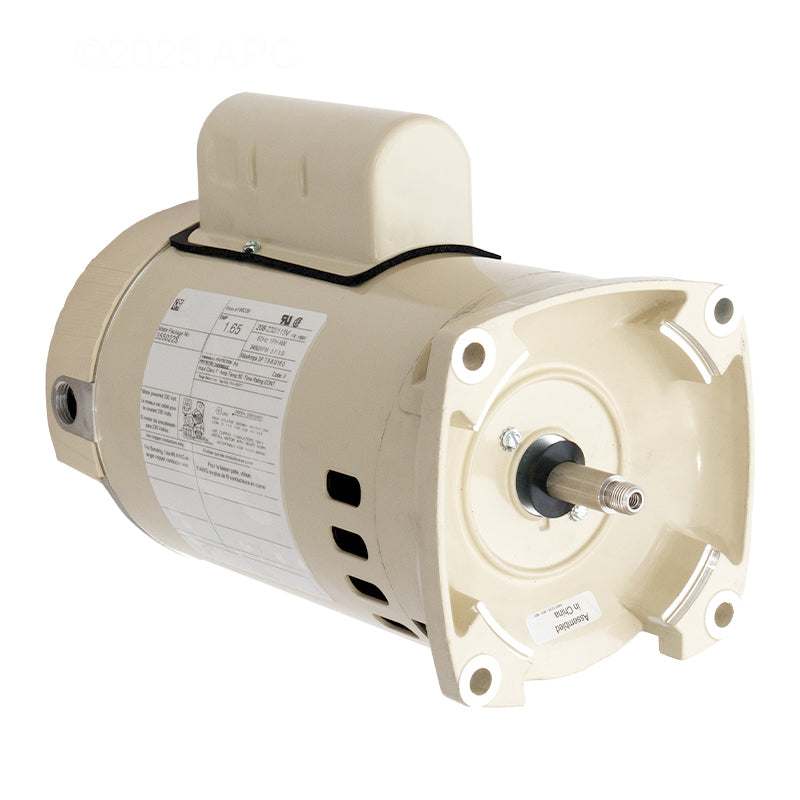

Pentair 355022S 1HP Square Flange Motor for WhisperFlo WF-4 & WF-26

The Pentair 355022S 1HP Square Flange Pool Pump Motor is a genuine OEM single-speed replacement motor engineered for Pentair WhisperFlo WF-4 and WF-26 in-ground pool pumps. Running at 115/208-230V with a 56Y square flange mount, this motor delivers consistent, reliable water circulation and is built to Pentair factory specifications for a direct drop-in replacement.

🚩 PRO TIP:   When replacing this motor, always install a new shaft seal. Reusing an old seal is the #1 cause of new motor failure. We recommend the Pentair 356198 Seal Kit for a perfect, salt-resistant seal. Also, verify your voltage (115V vs 230V) at the time clock before wiring!

PRODUCT FEATURES

• Genuine OEM Pentair replacement motor — guaranteed fit for WhisperFlo WF-4 and WF-26 pumps
• 1.0 HP full-rate, single-speed operation at 3450 RPM
• Dual voltage: 115/208-230V, 60 Hz — switchless design for easy wiring

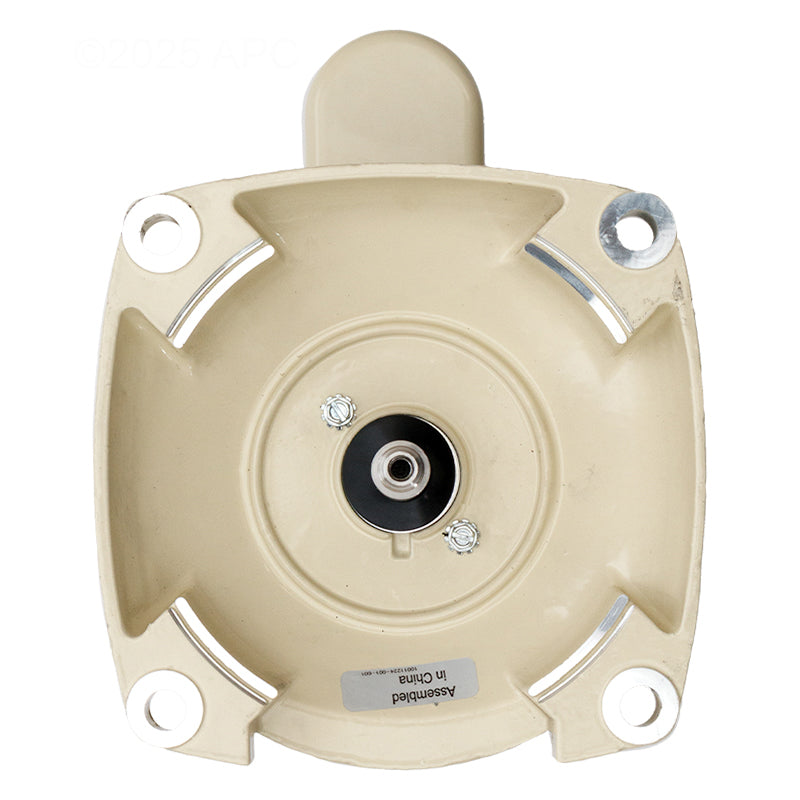

• 56Y square flange mount — the most common pool pump motor frame
• 1.65 service factor for extra torque in demanding pool environments
• Stainless steel shaft for corrosion resistance and long service life
• Ball bearing construction for quiet, efficient operation
• Almond color to match existing Pentair equipment

TECHNICAL SPECIFICATIONS

• Part Number: 355022S (also 075234S, 35-102-2048, PAC-101-5266)
• Brand: Pentair
• Horsepower: 1.0 HP (Full Rate)
• Voltage: 115/208-230V, 60 Hz
• Speed: Single Speed — 3450 RPM
• Service Factor: 1.65
• Frame: 56Y Square Flange
• Rotation: CCW (Counter-Clockwise, pump end)
• Shaft: Stainless Steel
• Color: Almond
• Dimensions: 13" L x 9" W x 7" D
• Weight: ~18 lbs
• Compatible Pumps: Pentair WhisperFlo WF-4, WF-26
• Compliance Note: NOT California or New York Title 20 compliant — not for sale in CA or NY
