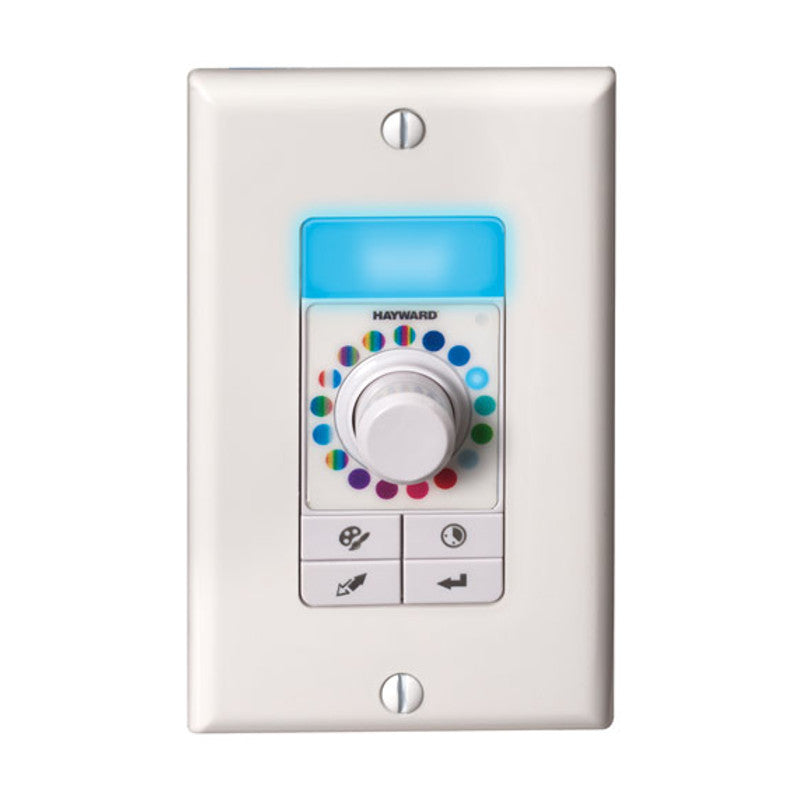

Hayward LKCUS1100 ColorLogic Standalone LED Pool Light Controller 120V

The Hayward LKCUS1100 ColorLogic Light Controller puts the power of colorful, customizable low-voltage LED lighting at your fingertips. Designed as a sleek, standalone wall unit, it allows you to instantly view and choose from 10 beautiful fixed colors and 7 color-changing light shows. This 120V, 300W controller is the only one on the market that retrofits easily into an existing light switch, giving you an unparalleled level of control over your backyard ambiance.

🚩 PRO TIP

For outdoor installations, a UL-approved outdoor-rated box is required. Ensure your gang box has a minimum volume of 14 cubic inches (2.75 inches deep) when retrofitting into an existing light switch location. Also, set your ColorLogic lights to "UCL mode" before installing the controller — if not in UCL mode, the lights will not respond correctly.

PRODUCT FEATURES

• Easy Retrofit: The only lighting controller that fits easily into an existing standard light switch gang box.

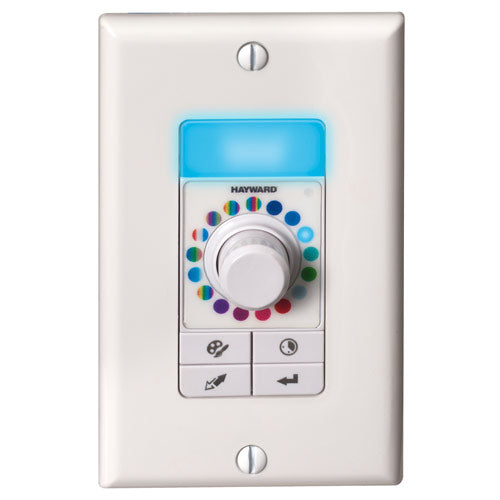

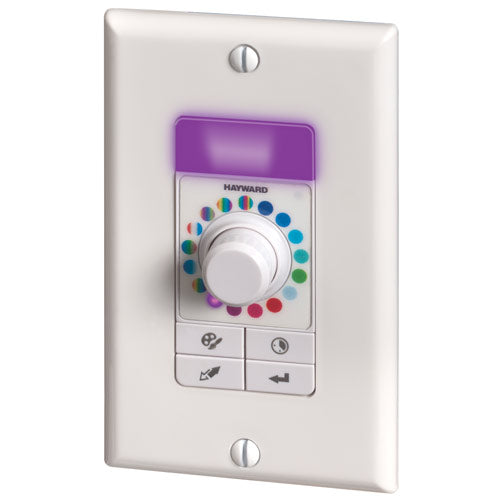

• Innovative Preview Window: View all ColorLogic colors and shows directly on the controller before they display in the pool.
• Extensive Options: Choose from 10 vibrant fixed colors and 7 dynamic color-changing light shows.
• Advanced Controls: Features a resync button for multiple-light installations and a schedule button for recurring light settings.
• Indicator LEDs: Illuminate to clearly show the currently selected color or light show.
• OmniDirect Compatible: Works seamlessly with Hayward OmniDirect automation systems.
• UL Listed: Meets rigorous safety standards for indoor and outdoor use.

TECHNICAL SPECIFICATIONS

• Brand: Hayward
• Model: ColorLogic Light Controller - Standalone
• Part Number: LKCUS1100
• Voltage: 120V Input (Controls 12V low-voltage lights via transformer)
• Max Wattage: 300W
• Amperage: 2.5 Amps
• Dimensions: 4-1/8" x 1-3/4" (Controller Face)
• Shipping Weight: 3.6 lbs
• Compatibility: Hayward Universal ColorLogic 12V LED Pool/Spa Lights, ColorLogic 320/160/80/40 12V LED Lights, ColorLogic Bulb 120V LED
• UPC/GTIN: 610377300834
• Certifications: UL Listed, cUL Certified
• Warranty: 3-Year Parts / 1-Year Labor (when sold by Hayward Rewards partner)

FREQUENTLY ASKED QUESTIONS

Does this controller require a transformer?

Yes. The LKCUS1100 operates on 120V but controls 12V low-voltage lights. A separate 12V transformer (such as the Hayward LTBUY11300) is required to power the lights themselves.

Is there a Wi-Fi or remote control option for this unit?

No, the LKCUS1100 is a standalone wall controller. If you want Wi-Fi or app control, you would need to upgrade to a full Hayward automation system (like OmniLogic) with network-ready lights.

Can I sync multiple lights with this one controller?

Yes! As long as the lights are wired on the same circuit and do not exceed the 300W maximum, the controller features a dedicated Resync button to easily synchronize multiple ColorLogic lights to the same color or show.

Will this work with my older 120V ColorLogic 4.0 lights?

No. The LKCUS1100 is designed specifically for Hayward's low-voltage (12V) Universal ColorLogic and CrystaLogic LED lighting families, as well as the ColorLogic 120V Bulb. It is not compatible with older 120V fixture models that do not support UCL mode.

How do I set the timer or schedule?

The controller features dedicated buttons for scheduling and countdown timers. You can program recurring light settings directly from the wall unit — no separate time clock required. Refer to the included owner's manual (Part# 092582RevB) for step-by-step programming instructions.
