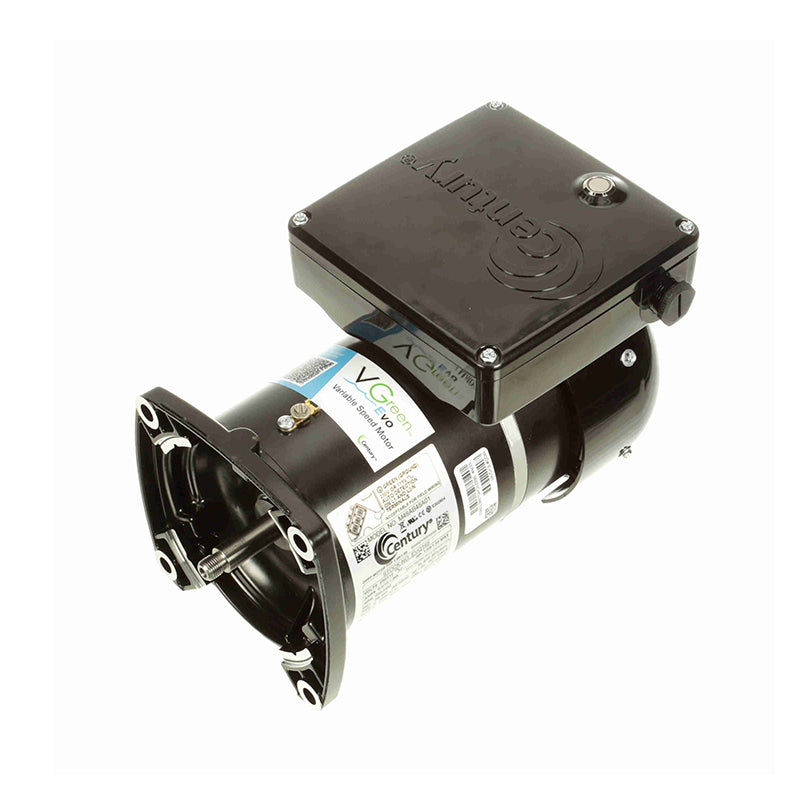

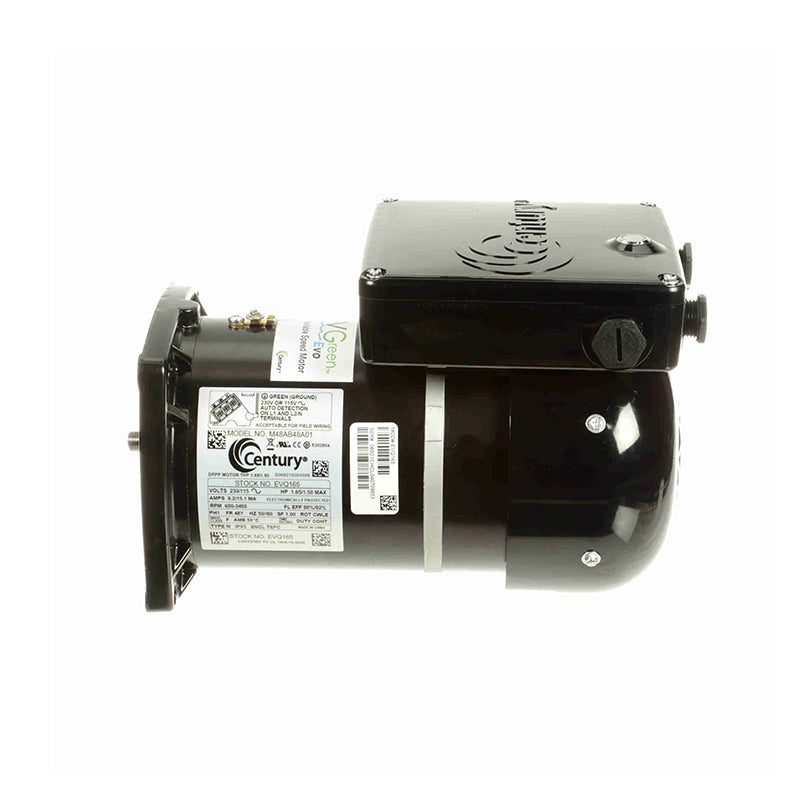

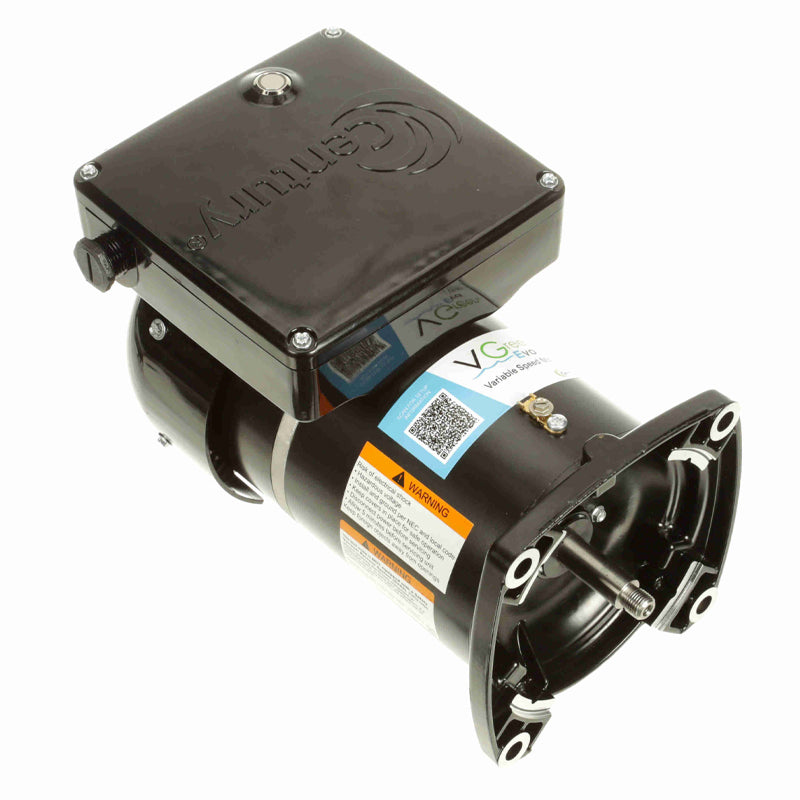

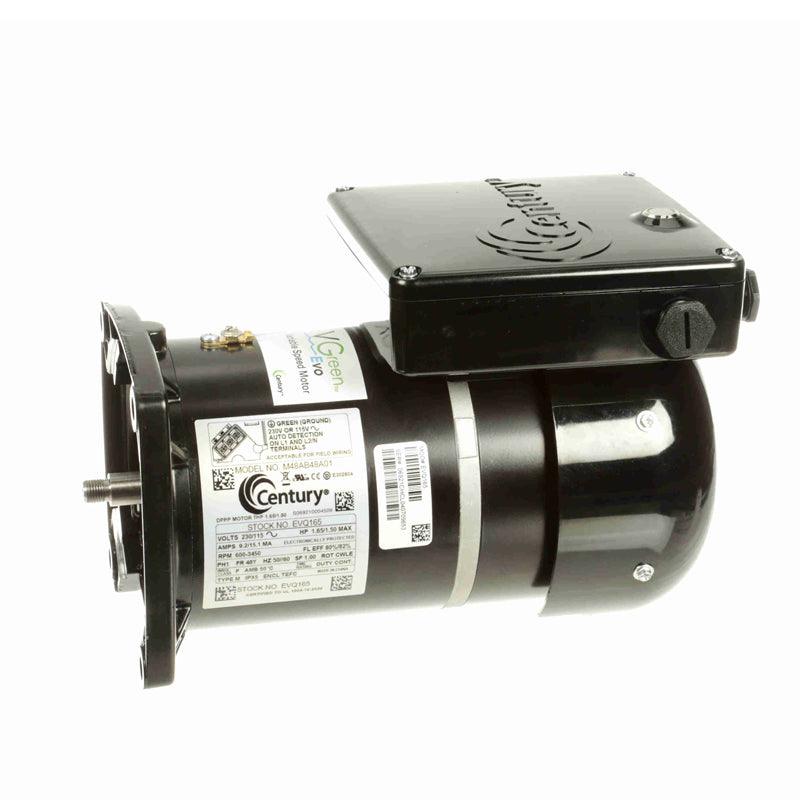

Century VGreen EVO EVQ165 1.65 THP Variable Speed Pool Pump Motor 48Y Sq Flange

The Century VGreen EVO EVQ165 is a cost-effective 1.65 THP variable speed pool pump motor with a 48Y square flange for direct drop-in replacement on Pentair, Sta-Rite, Hayward, and other major pump brands. With a 600–3450 RPM range and automatic 115/230V detection, it delivers energy savings up to 90% compared to single-speed motors while complying with 2021 DOE regulations.

🚩 PRO TIP

The EVQ165 square flange (48Y frame) fits Pentair WhisperFlo, SuperFlo, Challenger, and Sta-Rite Max-E-Pro pumps. It's a direct drop-in — no adapters, no extra plumbing. Program your speed schedule with the single-button interface in minutes.

PRODUCT FEATURES

• 1.65 THP output (1.50 HP at 115V) — meets 2021 DOE energy efficiency regulations
• Variable speed operation: 600–3450 RPM for maximum energy savings
• Dual voltage 230/115 VAC with automatic voltage detection
• Simplified single-button user interface with pre-programmed speed schedules
• TEFC design with IPX5 moisture intrusion rating — UV and rainproof
• Freeze protection built-in
• 303 stainless steel shaft with Class F insulation
• Lightweight, compact design with rotatable mains wiring compartment
• Compatible with most pool automation systems

TECHNICAL SPECIFICATIONS

• Model / Part Number: EVQ165
• Total Horsepower: 1.65 THP (1.50 HP at 115V)
• Voltage: 230/115 V (Dual Voltage, Auto-Sensing)
• Amperage: 10.5 / 17.7 Max A
• Speed Range: 600–3450 RPM (Variable)
• Frame: 48Y (Square Flange)
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Phase: Single Phase
• Frequency: 50/60 Hz
• Insulation Class: F
• Service Factor: 1.00
• Shaft: 5/8" diameter, stainless steel, threaded
• Ambient Temperature: 50°C
• Weight: 21.12 lbs
• UPC: 786674077202
• Compatible Pumps: Pentair WhisperFlo, SuperFlo, Challenger, Max-E-Pro, TriStar, Sta-Rite
