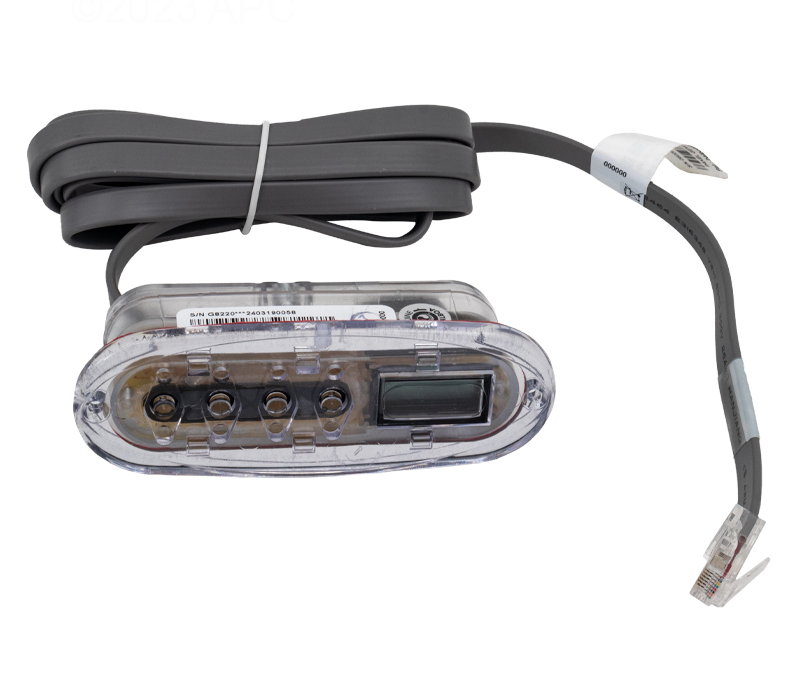

The Balboa Water Group G8220 (or 55472) VL200 Mini Oval is a 4-button, compact LCD topside keypad designed for hot tubs and spas. It features a 6-7ft RJ45 connector cable, providing easy plug-and-play installation for systems like VS501Z and GS501Z. This panel typically includes Warm, Cool, Jets, and Light buttons.
⚠️ Note: This is the keypad only and does not include the graphic overlay. You will need to reuse your existing overlay or purchase a new one (e.g., Balboa 11852 or 11393) to complete the installation.
Key Features and Specifications:
Model: VL200 Mini Oval (E4)
Part Numbers: G8220, 55472, 34-55563-K, 53238
Dimensions: Approx 4-3/8" x 1-5/8"
Buttons: 4-Button (Temp/Warm, Cool, Jets, Light)

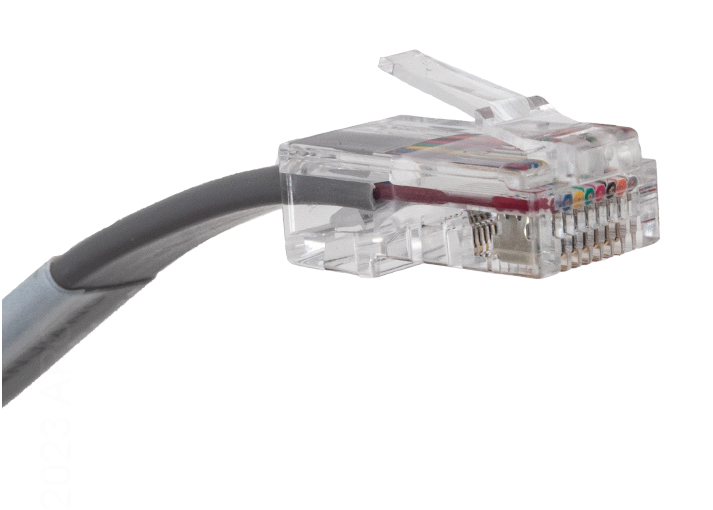

Connector: RJ45 (8-wire)
Compatibility: Works with Balboa Duplex series spa packs.
Compatibility Note:
The G8220 is often sold as a "keypad only" (no overlay), requiring the user to select the appropriate graphic overlay for their specific spa brand. It replaces numerous older models including 55123, 52312, and 52267.

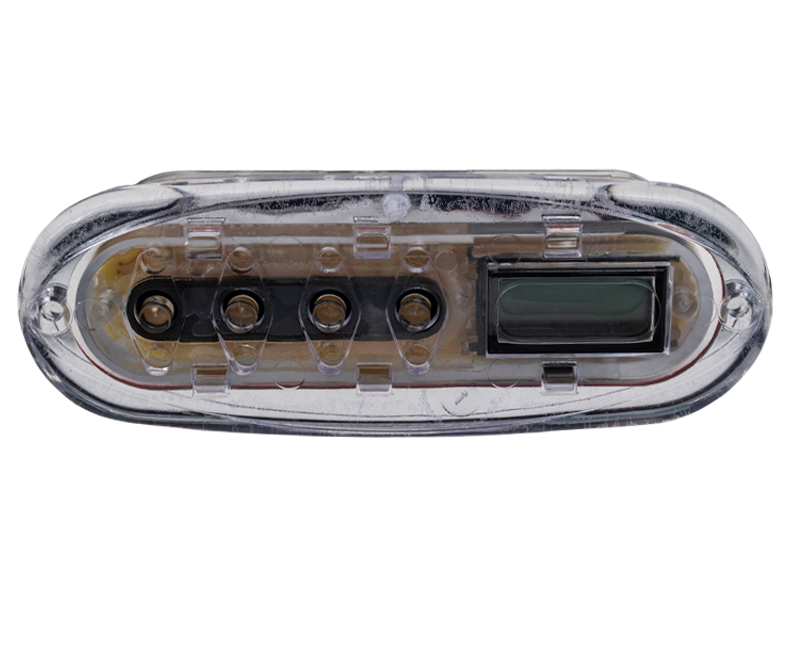

Keypad Layout:
Top/Left: Warm/Temp
Bottom/Left: Cool
Top/Right: Jets
Bottom/Right: Light
