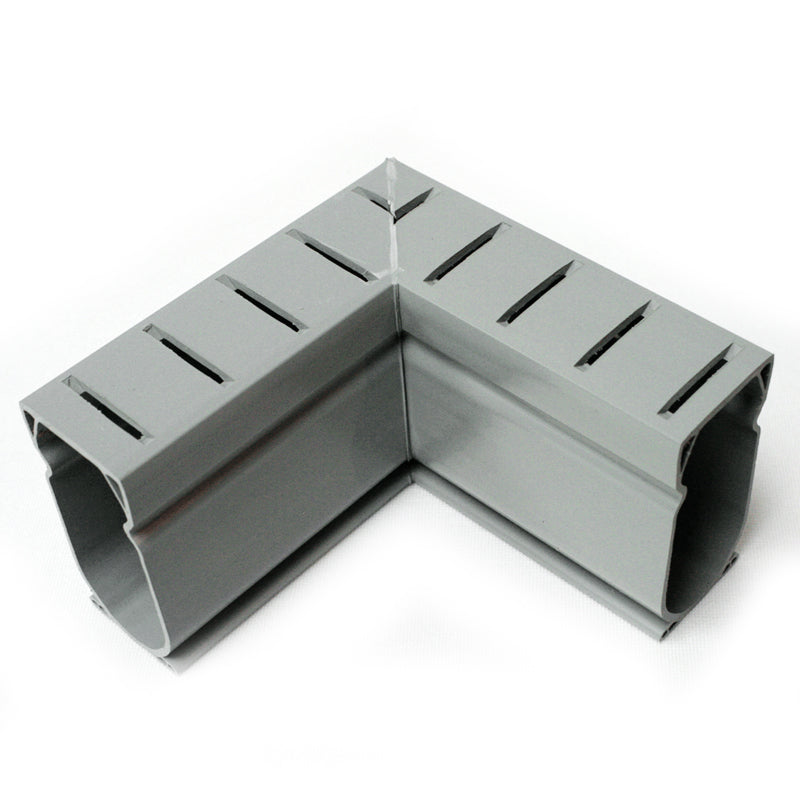

Stegmeier D9G 90 Degree Pool Deck Drain Angle Fitting Grey

The Stegmeier D9G Degree Angle Fitting (Grey) is a direct-connect corner joint designed specifically for the 1.6-inch Stegmeier Deck Drain system. It provides a watertight, seamless 90° turn for pool decks, patios, and pedestrian drainage pathways without the need for manual mitering or cutting.

🚩 PRO TIP

When installing Stegmeier Deck Drain around pool corners, use the D9G angle fitting to maintain a continuous drainage channel without cutting or mitering drain sections. Pair with Stegmeier connecting couplers and stake the drain on grade — no trenching required for most installations.

PRODUCT FEATURES

• No-Trench Installation: Easily stakes on grade alongside standard drain channels for rapid, trenchless setup.
• Weather-Resistant Durability: Manufactured from premium UV-stabilized PVC to prevent fading, warping, and cracking under direct sunlight.
• Seamless Integration: Perfectly color-matched (Grey) to blend with concrete, pavers, and stone pool decks.
• Compatibility: Requires Stegmeier Connecting Couplers (sold separately) to attach to straight 1.6" drain sections.


TECHNICAL SPECIFICATIONS

• Brand: Stegmeier
• Part Number (MPN): D9G
• UPC/GTIN: 844752004172
• System Compatibility: Stegmeier Deck Drain (1.6-inch width)
• Fitting Type: Non-directional 90-Degree Angle
• Color: Grey
• Material: UV-Stabilized Extruded PVC
• Weight: ~0.5 lb
• Sold As: Individual Unit (1 Each)


Frequently Asked Questions (FAQ)

How do I install the Stegmeier D9G corner fitting? To install the D9G 90-degree fitting, you must use Stegmeier Connecting Couplers on both ends of the angle. Slide the couplers over the D9G and connect them to your straight 1.6" Stegmeier Deck Drain channels. Stake the assembly on grade and pour your deck—no trenching is required.

Do I need to buy couplers separately? Yes. The Stegmeier D9G is a standalone fitting. Connecting couplers are required to bridge this 90-degree angle to your main drainage line.

Can this be used for driveways? No. The Stegmeier Deck Drain system (and the D9G fitting) is rated strictly for pedestrian traffic areas like pool decks and patios. It is not designed to support vehicular weight.
