Perma-Cast PB-AG Above Ground Pool Pump Water Bonding Fitting Kit

Ensure your above ground pool meets national electrical safety standards and prevent galvanic corrosion with the Perma-Cast PB-AG Water Bonding Fitting Kit. Designed specifically for above ground pools, this solid bronze fitting provides an intentional equipotential water bond to safely shunt stray electrical voltage to ground. It installs easily by screwing directly into the 1/4" drain plug port on your pool pump's leaf trap or strainer pot.

🚩 PRO TIP

This fitting is a critical safety component required by the 2008 NEC Electrical Code Section 680.26(C), which mandates an intentional water bond of at least 9 square inches for all pools. The PB-AG provides 10.5 square inches of conductive surface area, ensuring full compliance. It is an absolute must-have for pools using saltwater chlorine generators to prevent rapid electrolytic corrosion of metal pool walls and components.

PRODUCT FEATURES

• Code Compliant: UL Listed and fully complies with NEC 680.26(C) equipotential water bonding requirements.
• Maximum Protection: Provides 10.5 square inches of conductive surface area, exceeding the 9 sq. in. code minimum.
• Easy Installation: Designed as a pump mount fitting—simply replaces the 1/4" MPT drain plug on your pump's strainer pot.
• Corrosion Prevention: Helps prevent electrolytic and galvanic corrosion in above ground pool walls, rails, and exposed metal.
• Saltwater Essential: Highly recommended for all pools, but absolutely critical for pools equipped with salt water generation systems.

TECHNICAL SPECIFICATIONS

• Brand: Perma-Cast
• Model/Part Number: PB-AG (PBAG)
• Application: Above Ground Pools
• Mounting Location: Pump Strainer Basket / Hair and Lint Pot Drain
• Thread Size: 1/4" MPT (Male Pipe Thread)
• Conductive Surface Area: 10.5 Square Inches
• Material: Bronze
• UPC/GTIN: 758614155264

FREQUENTLY ASKED QUESTIONS

Where exactly does this fitting install?

The PB-AG fitting is designed to screw directly into the 1/4" female threaded drain port located at the bottom of your pool pump's hair and lint strainer pot (the basket housing at the front of the pump).

Why do I need a water bonding fitting?

National Electrical Code (NEC 680.26) requires pool water to be electrically bonded to the pool's equipotential bonding grid. This protects swimmers from stray electrical currents and prevents galvanic corrosion (electrolysis) from eating away at metal pool walls and components.

Is this required if I have a saltwater pool?

Yes, it is especially critical for saltwater pools. Saltwater is highly conductive, which accelerates galvanic corrosion. A proper water bond, often combined with a zinc sacrificial anode, is necessary to protect your pool's metal structure.

Does this fitting meet the NEC 9 square inch requirement?

Yes. The NEC requires a minimum of 9 square inches of conductive surface area in contact with the water. The Perma-Cast PB-AG provides 10.5 square inches, fully satisfying the code requirement.

Does it come with the wire to connect to the bonding grid?

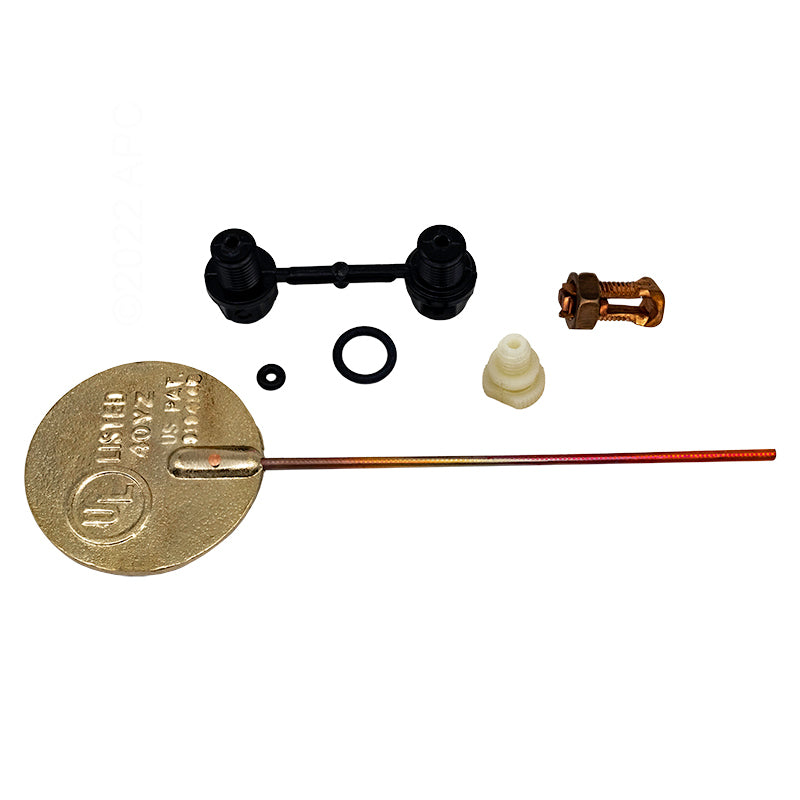

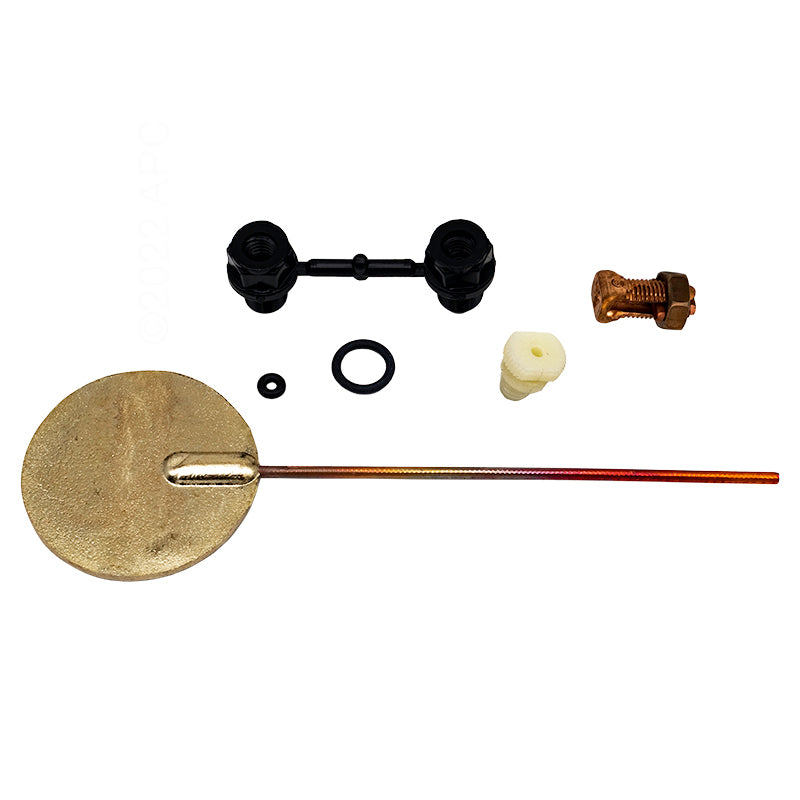

This kit includes the bronze fitting, the wire seal lug, and necessary o-rings. You will need to provide your own #8 AWG solid bare copper bonding wire to connect the lug to your pool's existing bonding grid.
