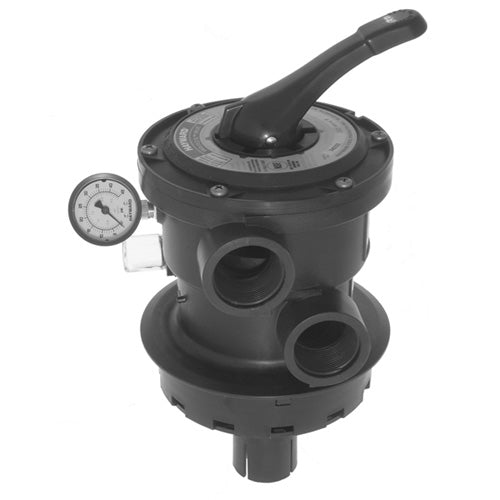

Hayward Vari-Flo Top-Mount Multiport Valve - SP071621

Hayward SP071621 Vari-Flo XL Multiport Valve (2" FIP)

Restore Your Filter's Power The genuine Hayward SP071621 is the industry standard for ProSeries and ProSeries Plus sand filters. Engineered for maximum flow at lower pressure drops, this 2-inch top-mount valve ensures your pool stays crystal clear with minimal strain on your pump.

Six-Position Control + Winter Mode:

• Filter: Standard filtration and vacuuming.
• Backwash: Cleans the sand bed of accumulated debris.
• Rinse: Use after backwashing to flush the valve.
• Waste: Bypasses the filter for draining or heavy vacuuming.
• Recirculate: Circulates water without passing through the sand.
• Closed: Shuts off flow to the filter and pump.
• Winter: A dedicated setting to protect internal gaskets during the off-season.

Technical Specs:

• Port Size: 2" FIP (Female Iron Pipe Thread).
• Mounting: Top-mount clamp style (Fits 8" flange).
• Material: Corrosion-proof reinforced thermoplastic.
• Compatibility: Hayward S210T, S220T, S244T, S270T, S310T, and S360T series filters.

Note: Does not include flange clamp or O-ring. We recommend the GMX600NM Clamp for a secure installation.

Genuine OEM Quality. Expert Support. Only at Al’s Cool Pool Store.
