CMI EB3100 Equibond 3'x100' Copper Pool Bonding Grid Kit NEC 680

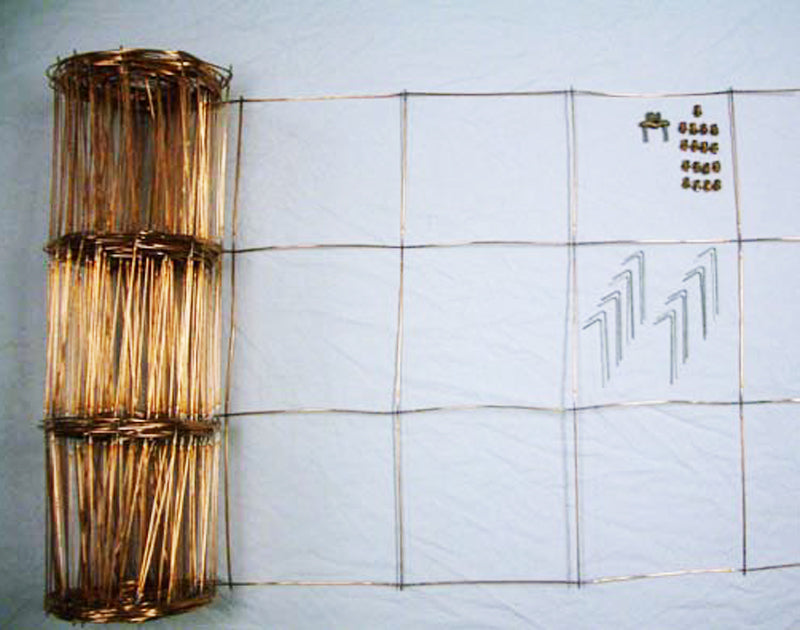

The CMI EB3100 EquiBond is a pre-fabricated 3-foot by 100-foot copper equipotential bonding grid kit. It protects pool decks from stray voltage and ensures full compliance with NEC Section 680.26(C). Built from exothermically welded #8 solid bare copper on 12-inch centers, this roll-out grid installs rapidly without hand-tying.

🚩 PRO TIP

The EB3100 must be installed beneath the paved surface, 3 feet out from the inside edge of the pool. Use the included rebar clamps to connect the grid to the pool's structural rebar, and the #8 split bolts to tie the corners together. A single installer can complete the job without special tools — simply unroll, stake, and clamp.

PRODUCT FEATURES

• Pre-Fabricated Grid: #8 solid bare copper eliminates hand-tying and saves labor.
• Exothermic Welds: Intersections welded on 12-inch centers for a permanent molecular bond.
• Code Compliant: Meets NEC 680.26(C) equipotential bonding requirements for permanently installed pools.
• Complete Kit: Includes UL-listed rebar clamps, 17 #8 split bolts, and 16 metal stakes


TECHNICAL SPECIFICATIONS

• Brand: CMI (EquiBond)
• Part Number (MPN): EB3100
• UPC/GTIN: 783935958232
• Dimensions: 3 ft wide × 100 ft long
• Conductor: #8 Solid Bare Copper
• Grid Spacing: 12 inches on center
• Connections: Exothermically Welded
• Code Compliance: NEC Section 680.26(C)
• Weight: 37.65 lb


Frequently Asked Questions (FAQ)

Where do I install the EB3100 bonding grid? The grid must be installed beneath the paved surface, extending 3 feet out from the inside edge of the pool. Use the included rebar clamps to connect the grid to the pool's structural rebar.

Are special tools required for installation? No. A single installer can roll out, stake, and clamp the grid using standard hand tools. Split bolts are provided to tie the corners together.
