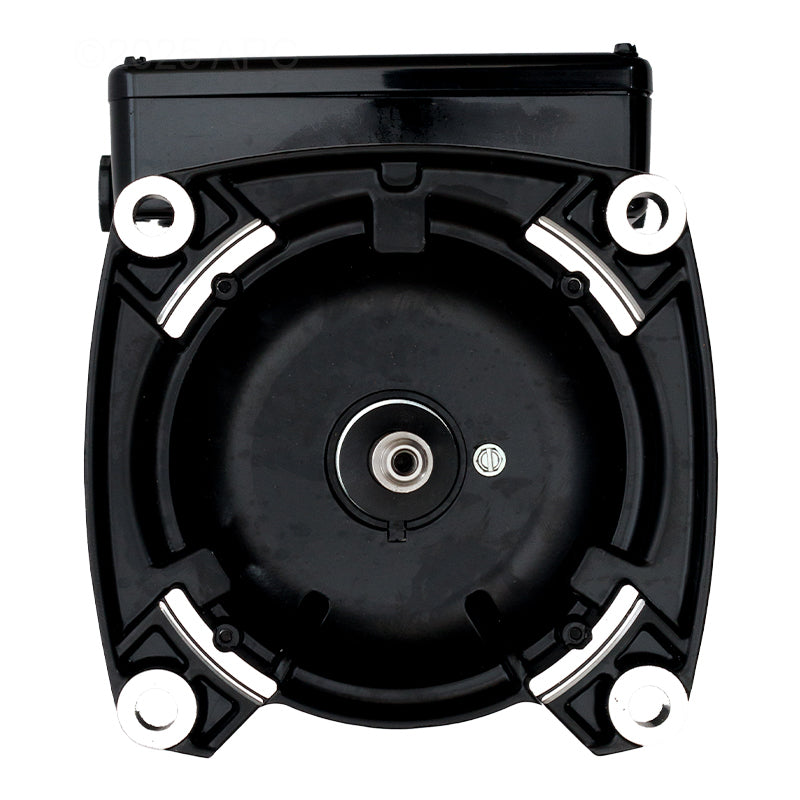

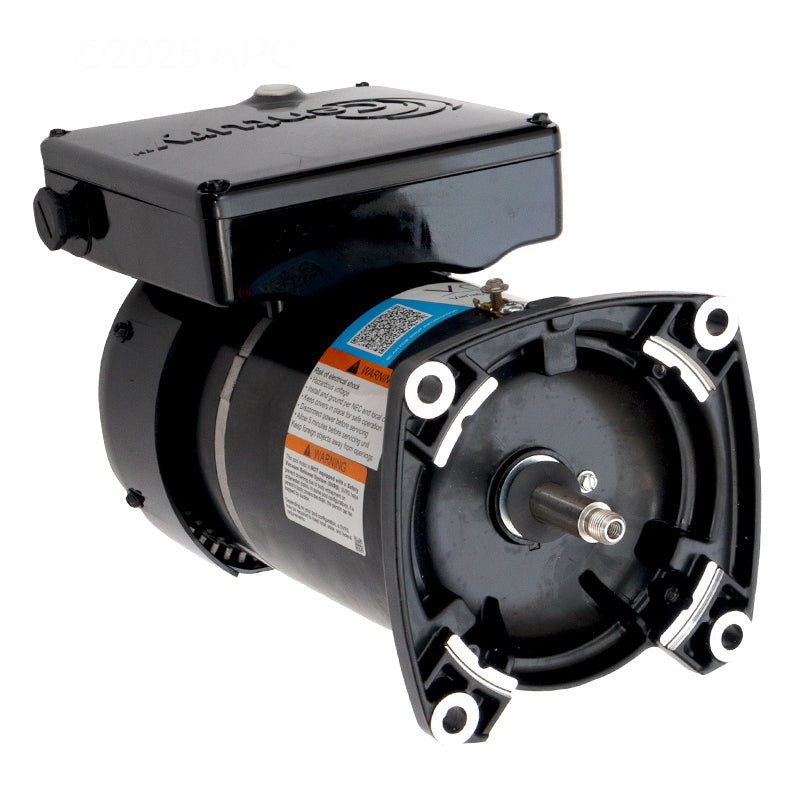

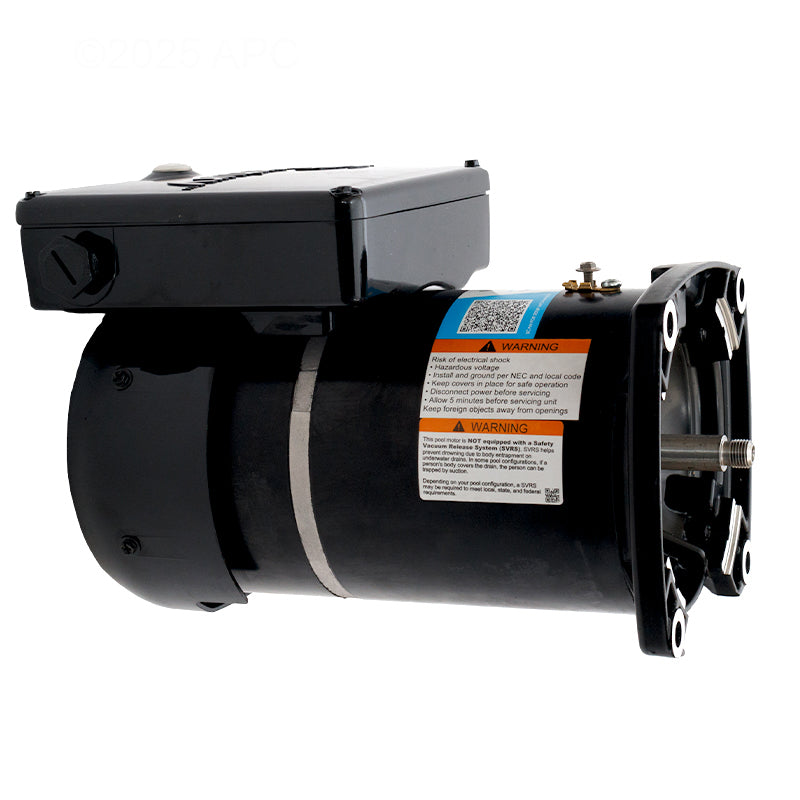

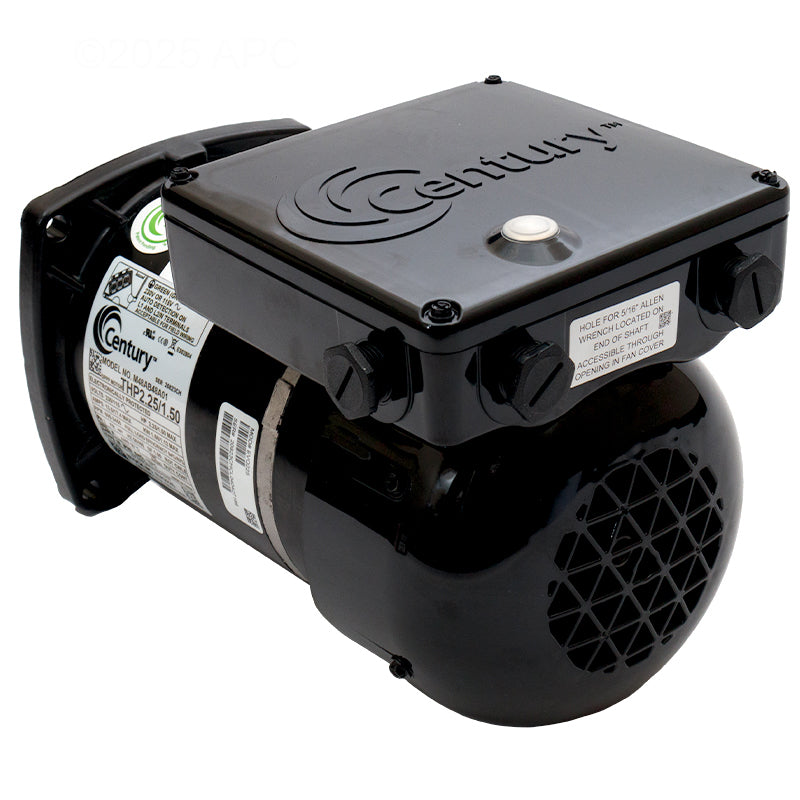

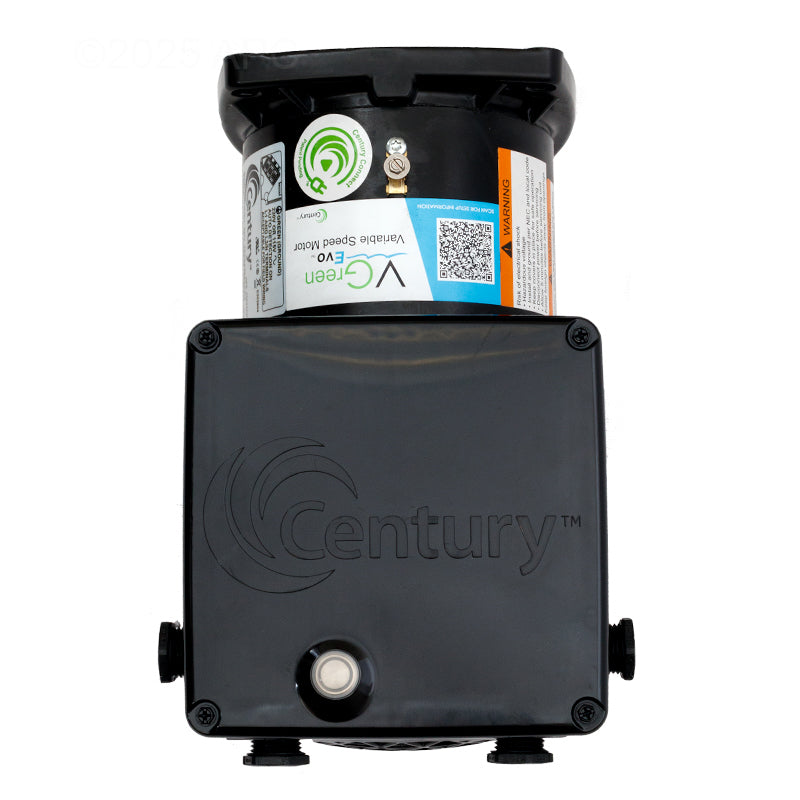

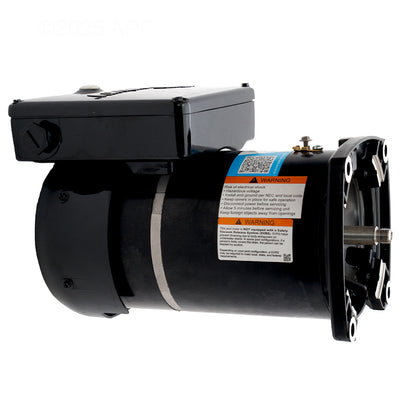

Century VGreen EVO EVQ225 2.25 THP Variable Speed Pool Pump Motor 48Y Sq Flange

The Century VGreen EVO EVQ225 is a high-performance 2.25 THP variable speed pool pump motor in a 48Y square flange configuration. Designed as a direct drop-in for pumps ranging from 1/2 to 2.25 HP, it delivers up to 90% energy savings over single-speed motors while meeting 2021 DOE regulations. With 600–3450 RPM variable speed and automatic 115/230V detection, it's the ideal upgrade for larger pool systems.

🚩 PRO TIP

The EVQ225 is compatible with Pentair WhisperFlo, Challenger, TriStar, Max-E-Pro, and Sta-Rite SHP Series pumps. For pools with longer pipe runs or larger water features, the 2.25 THP rating provides the extra power you need while still running efficiently at lower speeds during off-peak hours.

PRODUCT FEATURES

• 2.25 THP output (1.50 HP at 115V) — meets 2021 DOE energy efficiency regulations
• Variable speed operation: 600–3450 RPM for maximum energy savings
• Dual voltage 230/115 VAC with automatic voltage detection
• Simplified single-button user interface with pre-programmed speed schedules
• TEFC design with IPX5 moisture intrusion rating — UV and rainproof
• Freeze protection built-in
• 303 stainless steel shaft with Class F insulation
• Lightweight, compact design with rotatable mains wiring compartment
• Compatible with most pool automation systems
• Fits 48Y and 56Y frame pump housings

TECHNICAL SPECIFICATIONS

• Model / Part Number: EVQ225
• Total Horsepower: 2.25 THP (1.50 HP at 115V)
• Output KW: 1.7 kW
• Voltage: 230/115 V (Dual Voltage, Auto-Sensing)
• Amperage: 13.5 / 17.4 Max A
• Speed Range: 600–3450 RPM (Variable)
• Frame: 48Y (Square Flange) — also fits 56Y
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Phase: Single Phase
• Frequency: 50/60 Hz
• Insulation Class: F
• Service Factor: 1.00
• Shaft: 5/8" diameter, stainless steel, threaded
• Ambient Temperature: 50°C
• Weight: 22.26 lbs
• UPC: 786674077219
• Compatible Pumps: Pentair WhisperFlo, Challenger, TriStar, Max-E-Pro, Sta-Rite SHP Series
