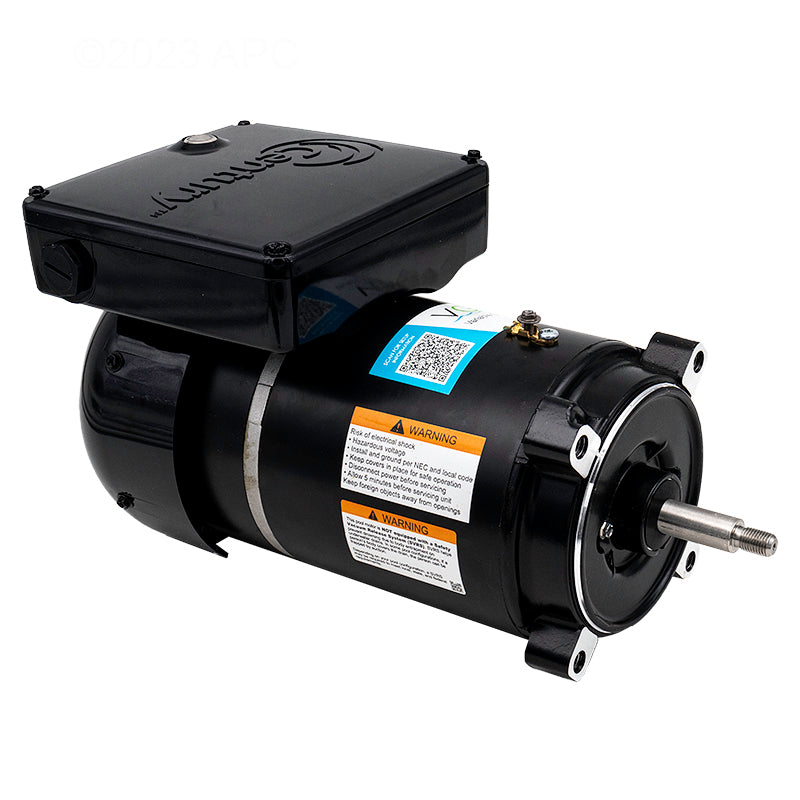

Century VGreen EVO EVC165 1.65 THP Variable Speed Pool Pump Motor

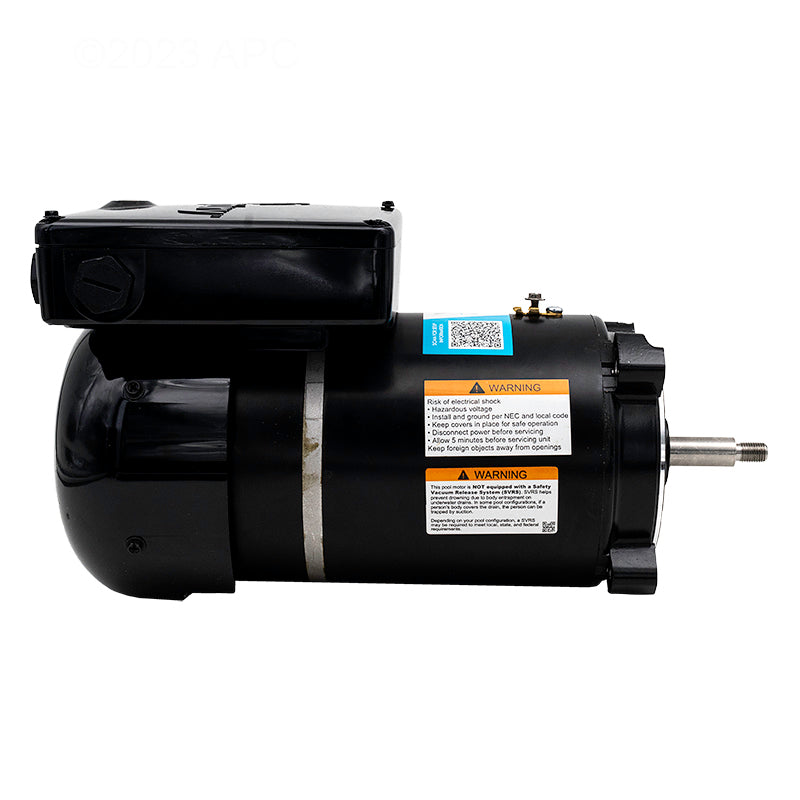

Century VGreen EVO EVC165 1.65 THP Variable Speed Pool Pump Motor - Side Profile View

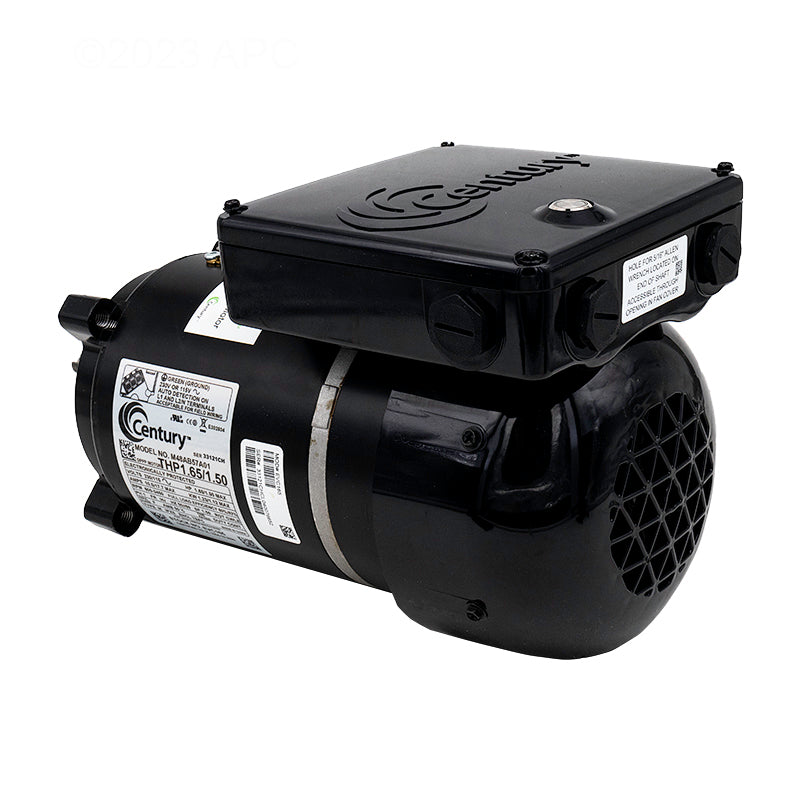

Century VGreen EVO EVC165 1.65 THP Variable Speed Pool Pump Motor - Back Side View

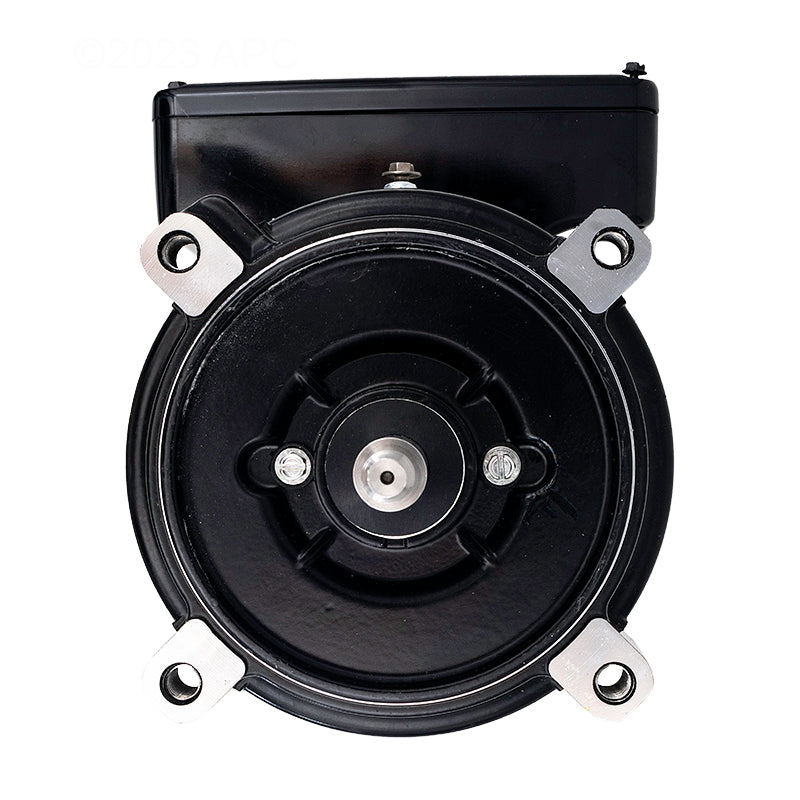

Century VGreen EVO EVC165 1.65 THP Variable Speed Pool Pump Motor - Front View Showing Shaft

Century VGreen EVO EVC165 1.65 THP Variable Speed Pool Pump Motor 56J C-Flange

$649.99
$649.99 $757.00
Share
Product Description

The Century VGreen EVO EVC165 is a high-efficiency 1.65 THP variable speed pool pump motor built for C-flange (56J) pump applications. Running at 600–3450 RPM with automatic dual-voltage detection (115/230V), it delivers significant energy savings over single-speed motors while meeting 2021 DOE regulations. The TEFC enclosure and IPX5 moisture rating ensure long-lasting outdoor durability.

🚩 PRO TIP

This C-flange (56J frame) motor is a direct drop-in replacement for most C-face pump housings including Hayward, Pentair, and Sta-Rite models. No additional wiring or plumbing required — simply swap the motor and program your preferred speed schedule with the single-button interface.

PRODUCT FEATURES

  • 1.65 THP output (1.50 HP at 115V) — meets 2021 DOE energy efficiency regulations
  • Variable speed operation: 600–3450 RPM for maximum energy savings
  • Dual voltage 230/115 VAC with automatic voltage detection — no manual switching
  • Simplified single-button user interface with pre-programmed speed schedules
  • TEFC (Totally Enclosed Fan Cooled) design with IPX5 moisture intrusion rating
  • Freeze protection built-in for year-round peace of mind
  • 303 stainless steel shaft with Class F insulation for extended motor life
  • Rotatable mains wiring compartment for easy installation in any orientation

TECHNICAL SPECIFICATIONS

  • Model / Part Number: EVC165
  • Total Horsepower: 1.65 THP (1.50 HP at 115V)
  • Voltage: 230/115 V (Dual Voltage, Auto-Sensing)
  • Amperage: 10.5 / 17.7 Max A
  • Speed Range: 600–3450 RPM (Variable)
  • Frame: 56J (C-Flange)
  • Enclosure: TEFC (Totally Enclosed Fan Cooled)
  • Phase: Single Phase
  • Frequency: 50/60 Hz
  • Insulation Class: F
  • Service Factor: 1.00
  • Shaft: 5/8" diameter, 7/16-20 threaded, stainless steel
  • Shaft Extension: 7/16-20 THREAD
  • Ambient Temperature: 50°C
  • Weight: 21.08 lbs
  • UPC: 786674077233
  • Country of Origin: Thailand
