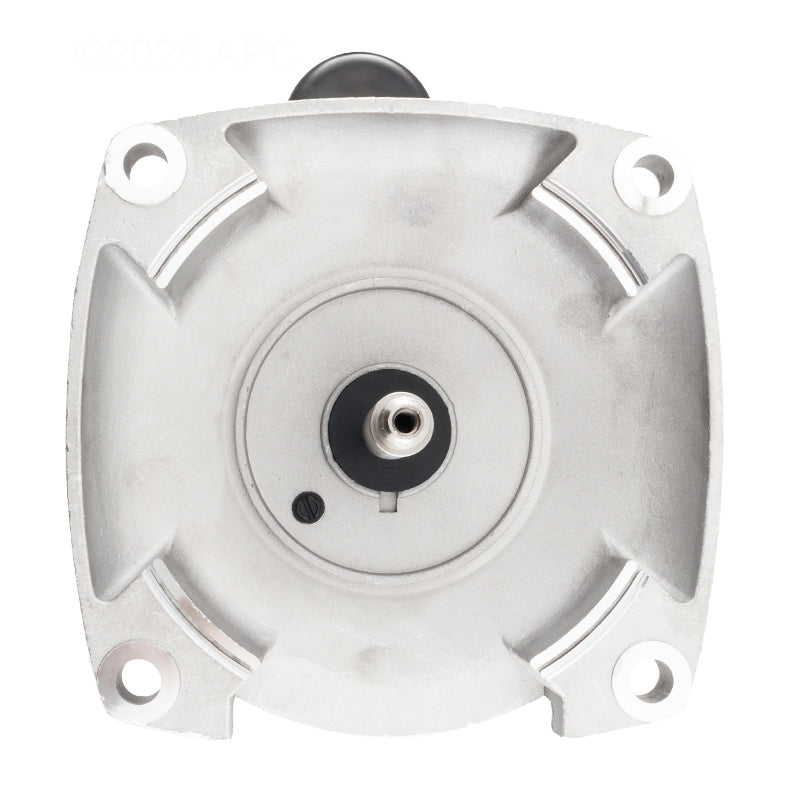

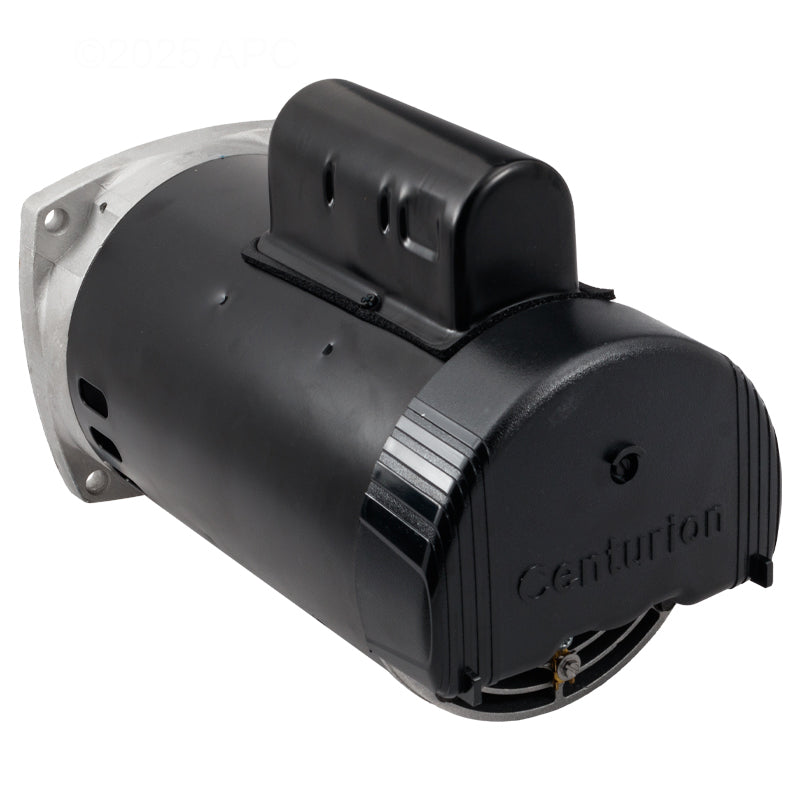

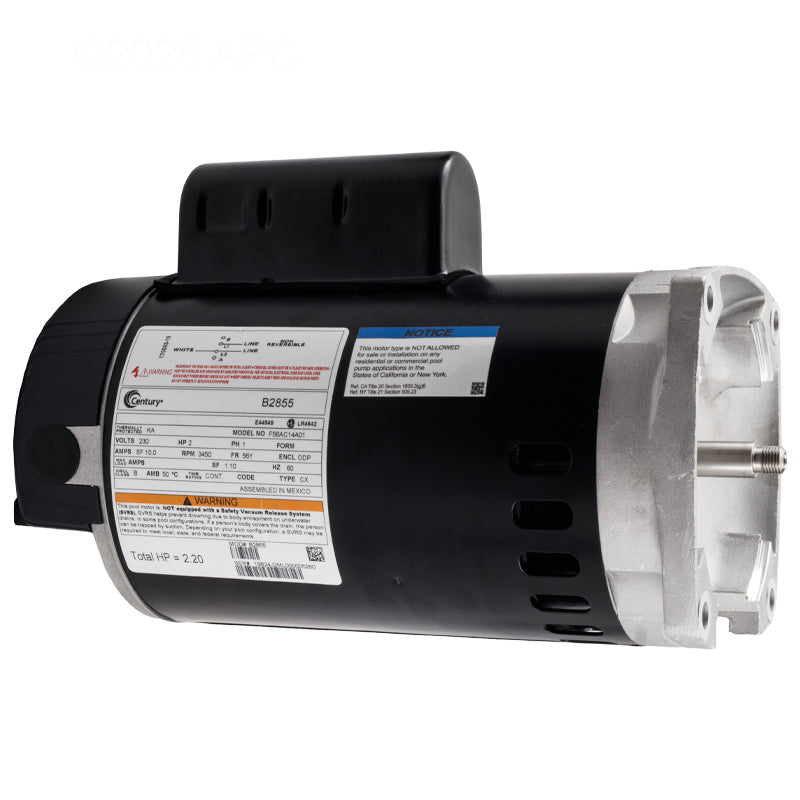

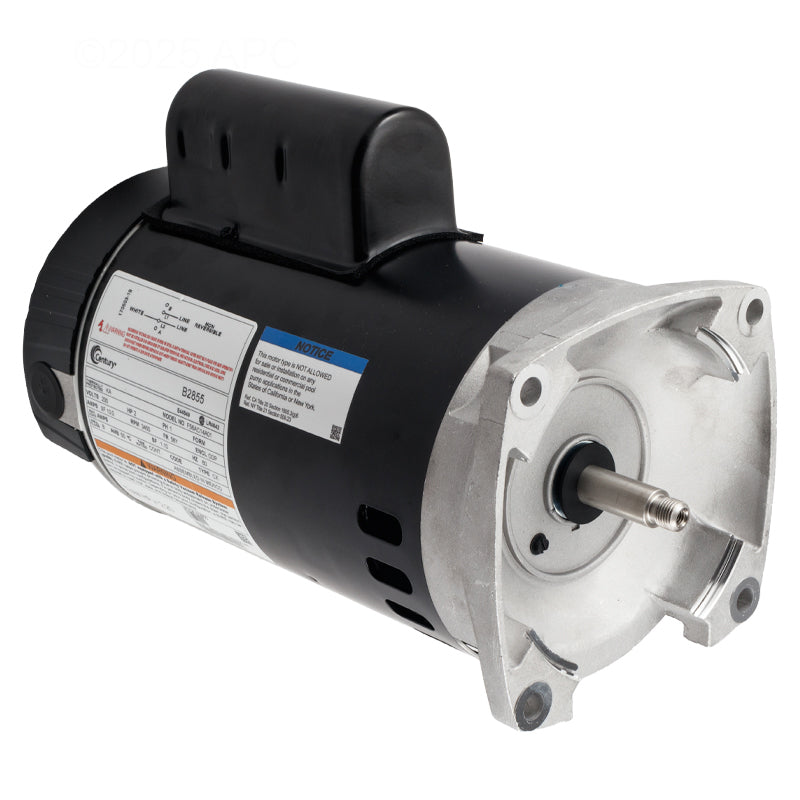

Century B2855 2HP 56Y Square Flange Up-Rated Pool Pump Motor 230V

The Century B2855 2 HP Up-Rated Square Flange Pool Pump Motor is a high-performance OEM-grade replacement motor engineered for in-ground pool and spa pumps. With a robust 56Y square flange frame, threaded stainless steel shaft, and Open Drip-Proof (ODP) enclosure, the B2855 delivers reliable single-speed performance at 3450 RPM on 230V.

🚩 PRO TIP

Always replace the shaft seal when installing a new motor — water intrusion from a worn seal is the #1 cause of premature motor failure and will void your warranty. Order a tune-up kit matched to your pump housing model at the same time to avoid a second service call.

PRODUCT FEATURES

• 2 HP Up-Rated (2.2 THP with 1.10 service factor)
• 56Y square flange frame for direct bolt-on replacement
• Single speed, 3450 RPM for maximum filtration flow
• Threaded stainless steel shaft — corrosion resistant
• Open Drip-Proof (ODP) enclosure for outdoor durability
• Switchless permanent split capacitor design
• Fits Hayward, Pentair, Sta-Rite, Jandy, Jacuzzi, and more
• 1-Year manufacturer warranty

TECHNICAL SPECIFICATIONS

• Model / Part Number: B2855 (replaces B855)
• Brand: Century (A.O. Smith / Regal Beloit)
• Horsepower: 2.0 HP Up-Rated (2.2 THP)
• Service Factor: 1.10
• Voltage: 230V (single voltage)
• Amperage: 10 A
• Speed: Single Speed, 3450 RPM
• Frame: 56Y Square Flange
• Shaft: Threaded, Stainless Steel
• Enclosure: Open Drip-Proof (ODP)
• Phase: Single Phase
• Frequency: 60 Hz
• Dimensions: 13" L × 8" W × 6.5" D
• Cross-References: B855, 177897, 182115, 193268, SQ120U, K48AA27A79
• Compatible Pumps: Sta-Rite Dura-Glas/Max-E-Glas, Pentair WhisperFlo/Challenger, Hayward, Jandy, Jacuzzi
• Note: Not compliant with CA/NY Title 20 energy efficiency regulations
• Warranty: 1 Year
