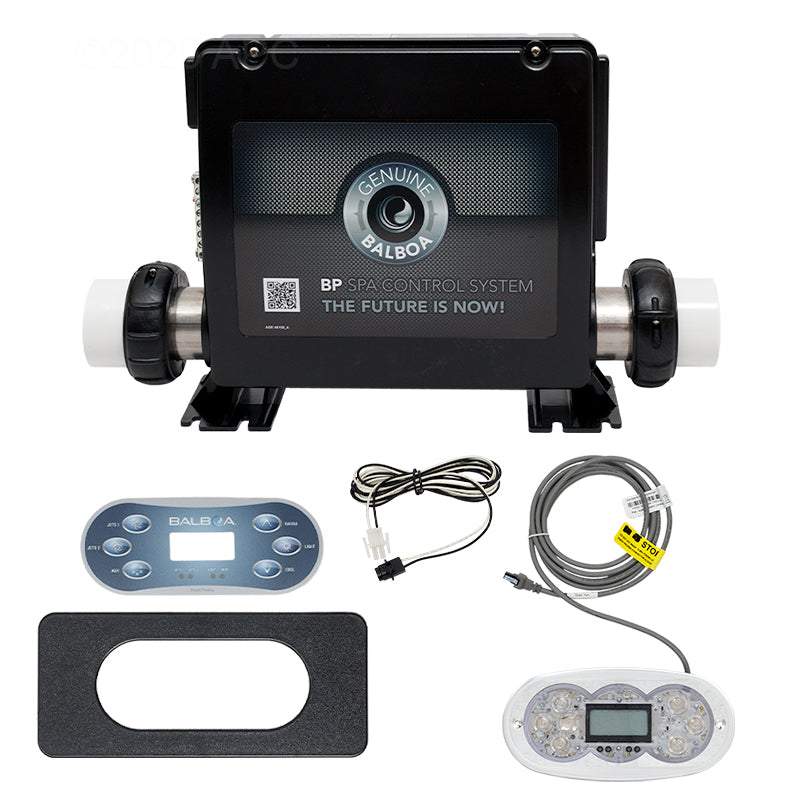

Balboa BP7 G6406 BBG6406 Retrofit Kit Complete Spa Control System with TP600 Topside Panel

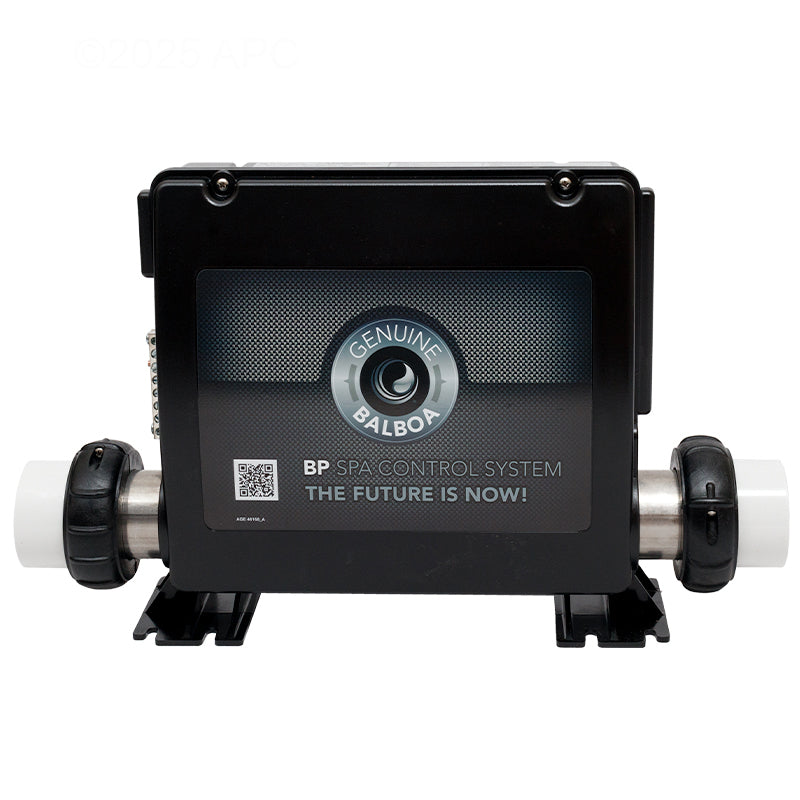

Balboa BP7 G6406 Spa Control Box Front View - BP Series Hot Tub Control System

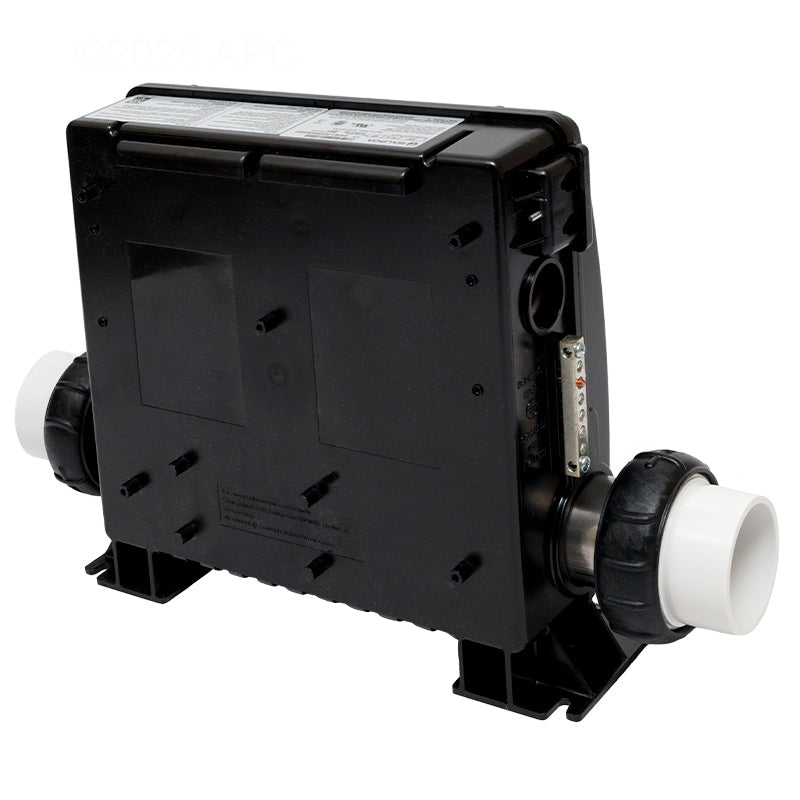

Balboa BBG6406 Control Box Side View - 4kW Heater Assembly for Hot Tub Retrofit

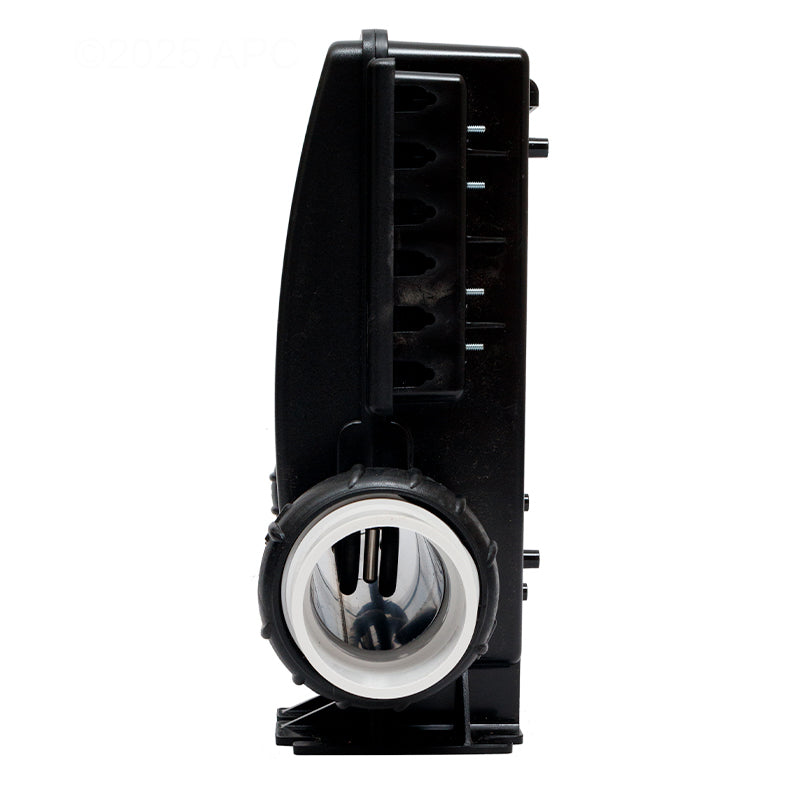

Balboa BP7 G6406 M7 4kW Titanium Heater Element - Efficient Hot Tub Water Heating

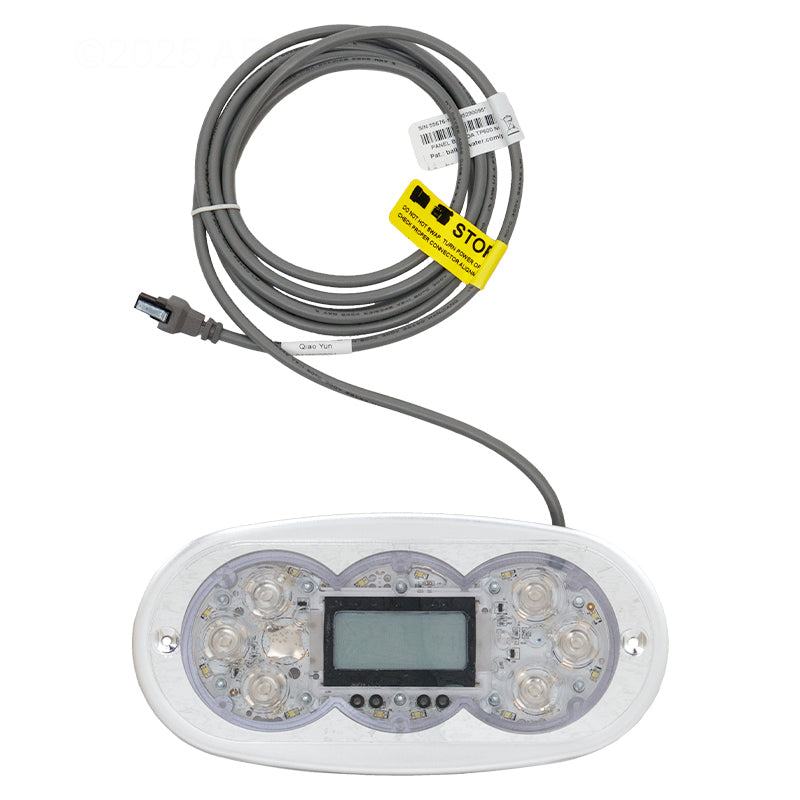

Balboa BBG6406 TP600 6-Button Topside Control Panel - Fits Standard Spa Cutout

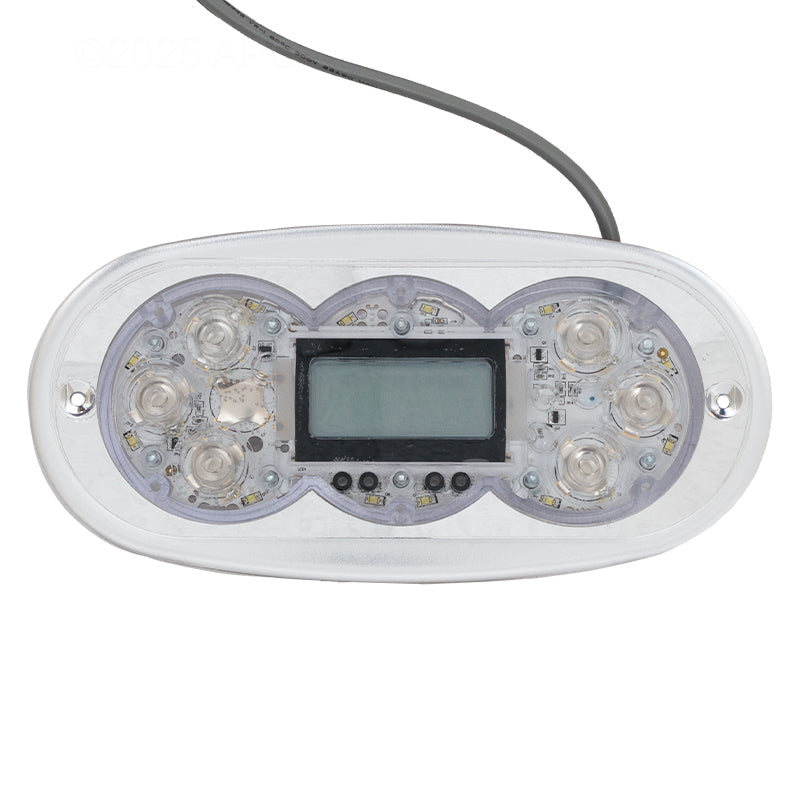

Balboa BP7 G6406 TP600 6-Button LCD Topside Panel Close-Up - Hot Tub Control Interface

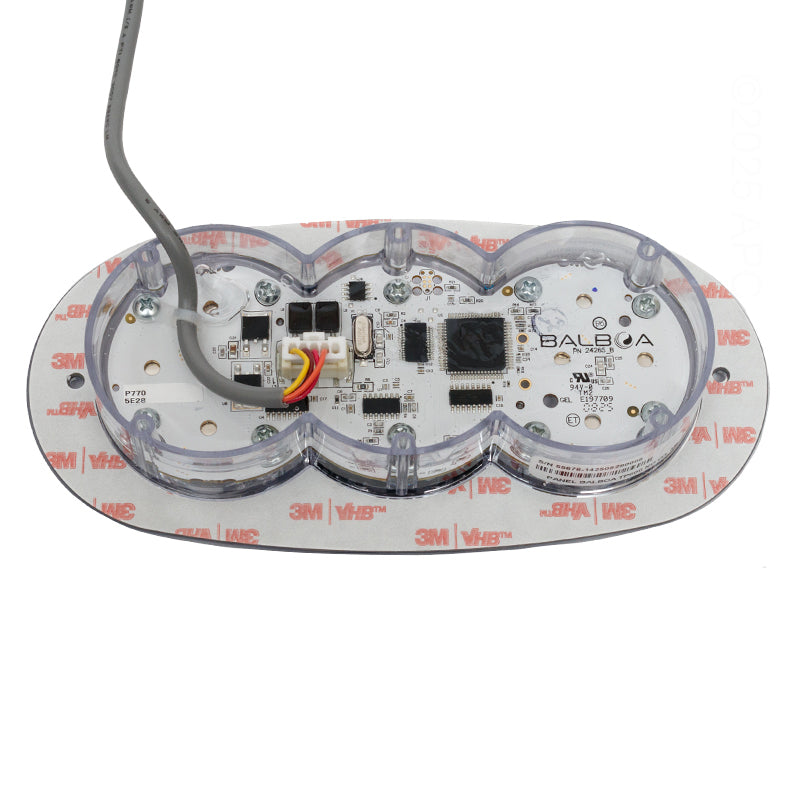

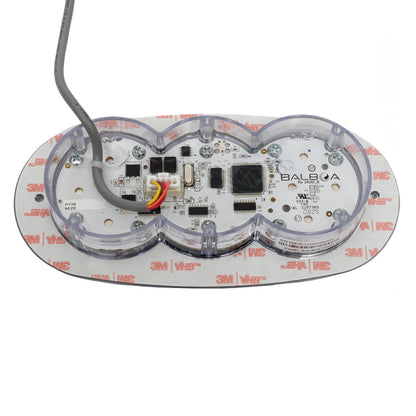

Balboa BBG6406 LED Light Controller Connection for Hot Tub Lighting - BP7 Spa System

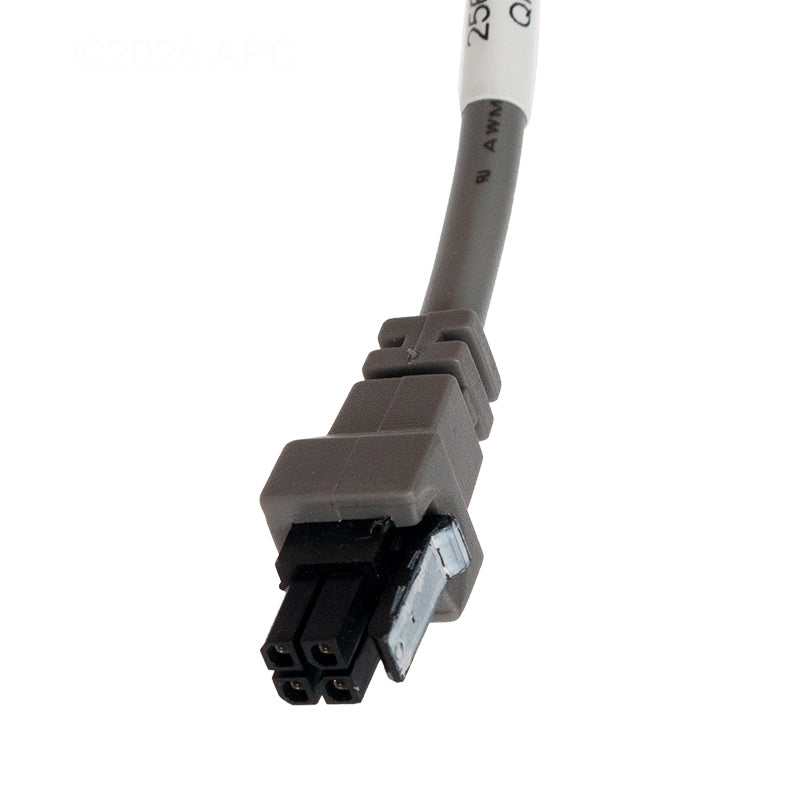

Balboa BP7 G6406 Wiring Harness Connector - Powers Pumps and Accessories in Hot Tub

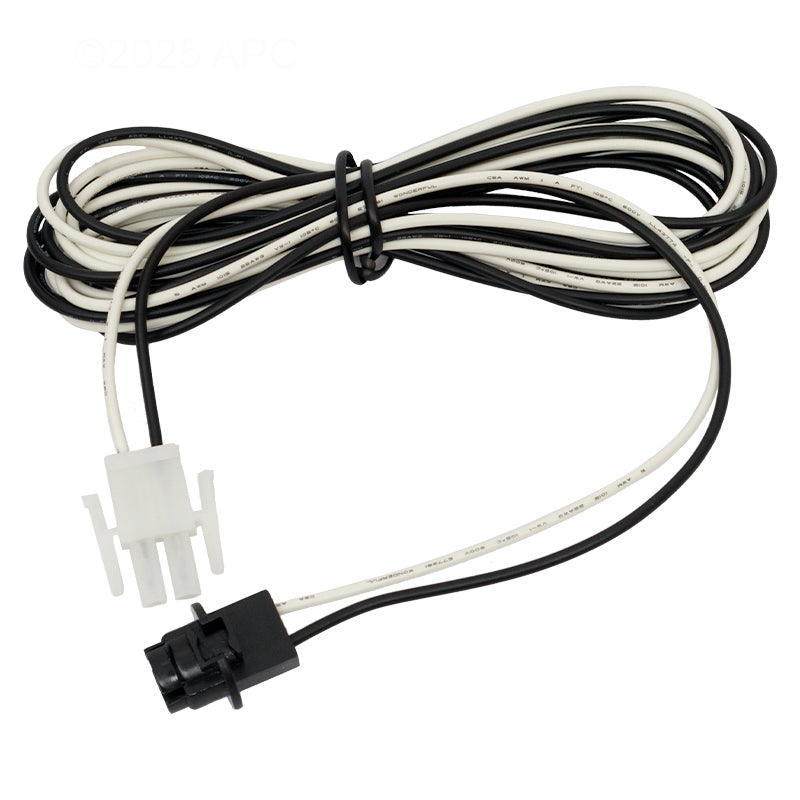

Balboa BBG6406 Control Box Rear View - Pump Port Connections and Sensor Inputs

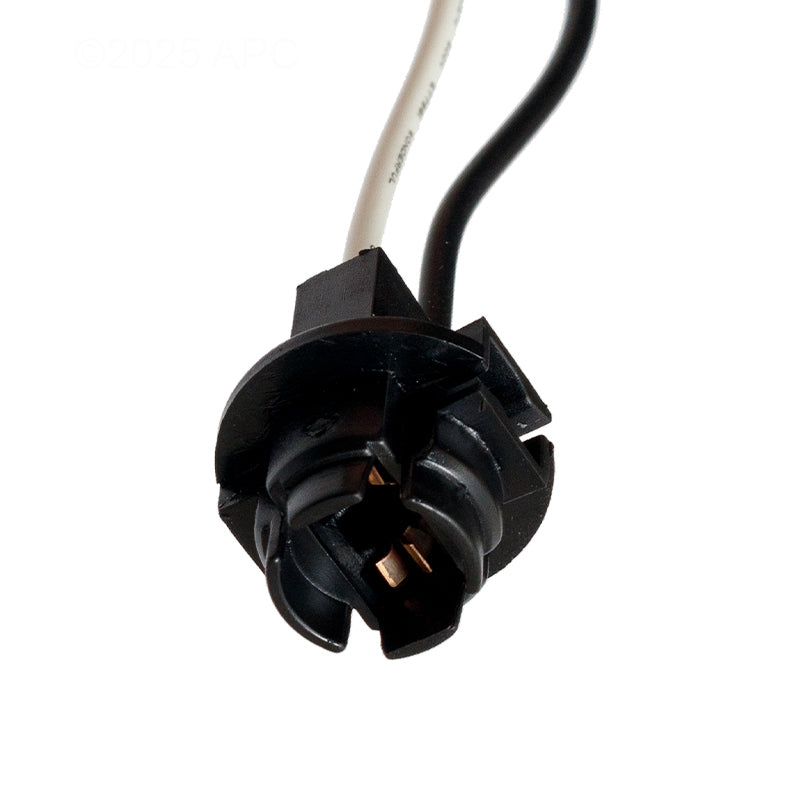

Balboa BP7 G6406 Pump Connection Ports - Supports 1 to 3 Pumps for Hot Tub Configuration

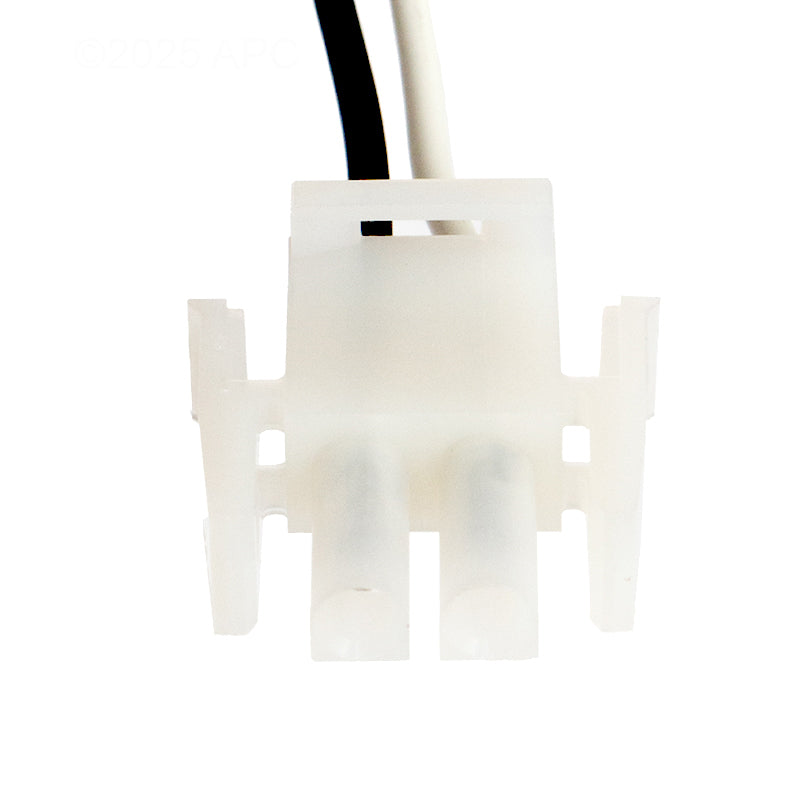

Balboa BBG6406 Temperature and Flow Sensor Cable Assembly - Spa Safety Monitoring

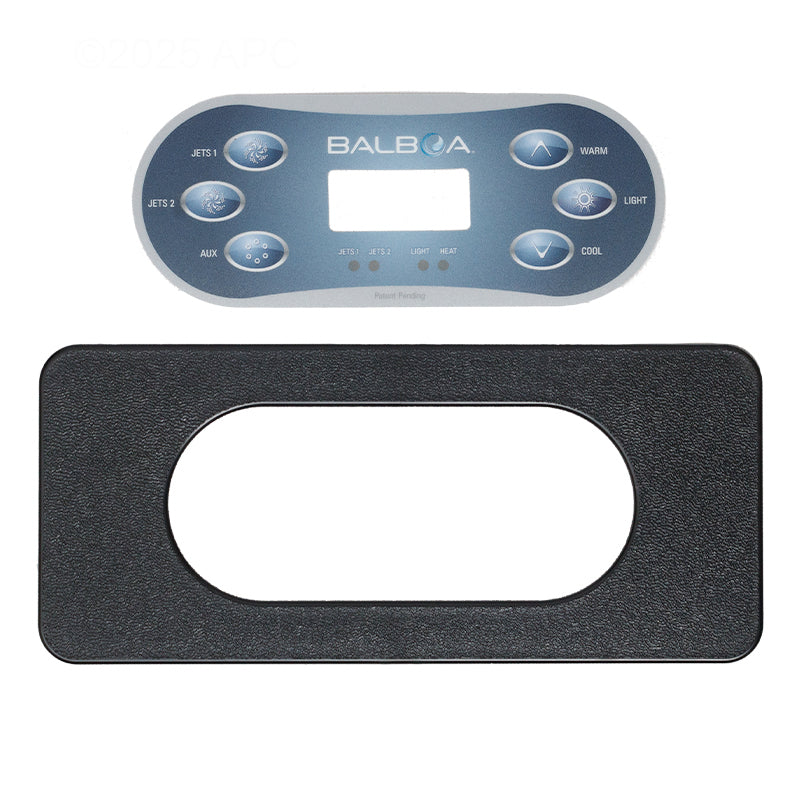

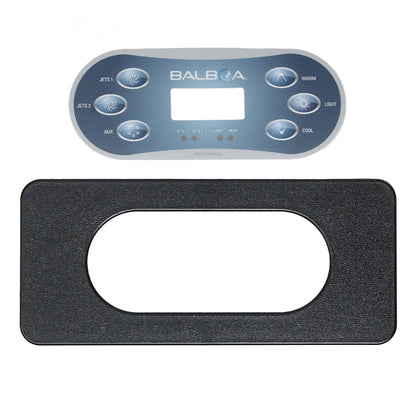

Balboa BP7 G6406 BBG6406 Full Kit Contents Overview - Complete Retrofit Package

Balboa BP7 4kW Spa Control System Retrofit Kit G6406 BBG6406

$567.60
$567.60 $579.99
Share
Product Description

The Balboa BP7 Retrofit Kit (BBG6406 / G6406) is the ultimate all-in-one spa control system upgrade, delivering modern technology, flexible configuration, and rock-solid reliability to virtually any hot tub. Engineered by Balboa Water Group — the industry leader in spa controls — this 4kW kit replaces outdated systems with ease and comes complete with the TP600 topside panel, M7 heater assembly, and everything you need to get your spa running like new.

🚩 PRO TIP: The BP7 defaults to "Setup 21" (one 2-speed pump). Before powering on, verify your component voltages and spa configuration using the wiring schematic on the back of the spa pack cover. Refer to the included installation guide or the Balboa BP7 Configuration Instructions for your specific pump/blower setup.

PRODUCT FEATURES

  • ✅ 32 Setup Configurations: 7 relays allow the BP7 to power spas with 1–4 pumps, including MicroSilk® systems — one kit fits nearly any spa.
  • ✅ Advanced M7 Technology: Patented dual-sensor system eliminates pressure switches and wall-mounted sensors, reducing failure points and extending heater life.
  • ✅ Wi-Fi Ready: Compatible with the ControlMySpa™ module (sold separately) for smartphone control from anywhere.
  • ✅ Universal Retrofit: Directly replaces Balboa BP, VS, and EL series systems, plus many other non-low-flow brands — no new topside panel needed in most cases.
  • ✅ 120V/240V Convertible: Flexible voltage support makes installation straightforward in any standard residential spa setup.
  • ✅ Plug-N-Click Heater: The included M7 4kW stainless steel heater connects quickly and cleanly — no tools required for heater attachment.
  • ✅ Broad Accessory Support: Works with ControlMySpa™, Balboa Bluetooth Audio, Chromozon3, and Status Pro accessories.
  • ✅ Durable, Weather-Resistant Enclosure: Built to withstand outdoor spa environments and meets US & Canadian safety standards.

TECHNICAL SPECIFICATIONS

  • SKU / Part Number: BBG6406 / G6406
  • Manufacturer: Balboa Water Group
  • Model: BP7
  • UPC: 0731946793458
  • Heater Wattage: 4.0 kW (Stainless Steel M7 Assembly)
  • System Voltage: 120V / 240V convertible
  • Frequency: 50 & 60 Hz
  • Pump Support: 1–4 pumps (main 2-speed + up to 3 additional single-speed)
  • 3rd Circuit: 1-Speed Blower or Pump (120/240V)
  • Dimensions: 17"L x 4.75"W x 11.5"H
  • Weight: 12.11 lbs
  • Topside Included: TP600 (6-button: Jets, Menu, Light, Temp Up/Down, Aux)
  • Replaces: 389173, VS300, VS500Z, VS501Z, VS501SZ, VS503SZ, VS510SZ, VS511Z, and more
  • Warranty: 1 Year Manufacturer Warranty
  • Installation: Professional installation required
