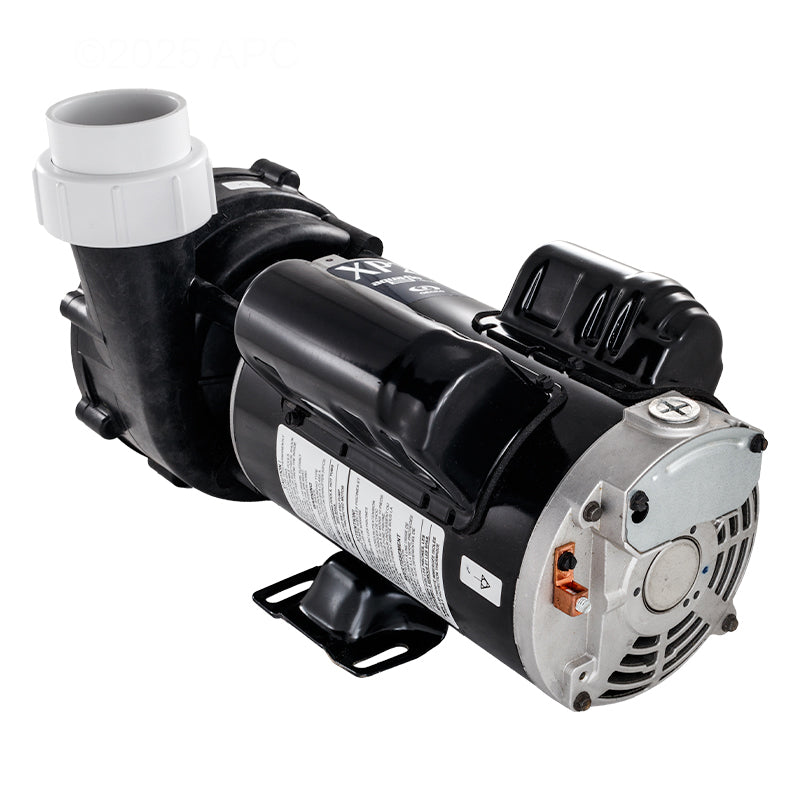

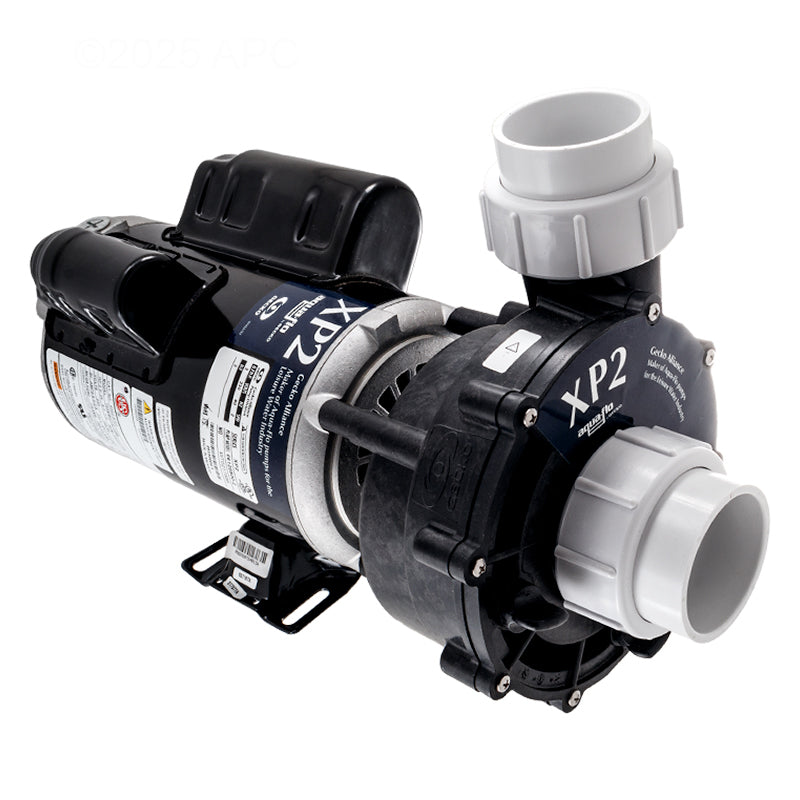

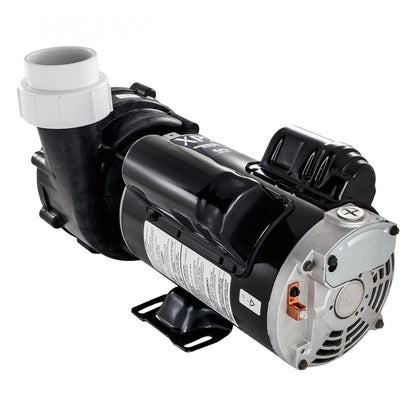

Aqua-Flo Flo-Master XP2 2HP 230V 2-Speed Spa Pump AF061205002040

The Aqua-Flo Flo-Master XP2 AF061205002040 by Gecko Alliance is a heavy-duty 2 HP, 230V dual-speed replacement pump engineered for large, multi-jetted hot tubs and premium portable spas requiring maximum volumetric water flow. Built with a space-efficient 48-frame chassis, this high-performance pump outperforms traditional 48-frame baselines by providing an increased shut-off head without modifying your existing plumbing footprint. Equipped with a premium chemical-resistant Viton mechanical seal, it effortlessly shifts between energy-efficient low-speed heating/filtration and high-speed therapeutic jet execution.

🚩 PRO TIP

This spa pump is manufactured without a factory power cord; you must reuse your existing amp cord or purchase a new 230V 2-speed pump cord separately. The high-volumetric wet end can be easily rotated 90 degrees to three standard positions (4, 6, or 9 o'clock orientations) by loosening the motor thru-bolts to align with unique spa internal plumbing angles. When confirming compatibility, always cross-reference the motor label operational amperage (8.4A High / 3.0A Low) rather than advertised horsepower alone. Replaces obsolete or current part numbers 06120500-2040, 6120000, 1-00-0144A, and 05120000-2040.

PRODUCT FEATURES

• High-Performance Flow: 2 HP dual-speed spa pump engineered specifically to drive high-capacity, multi-jet hot tub plumbing circuits.
• Footprint Optimization: Exceeds the shut-off head of traditional 48-frame pumps while matching the exact same physical installation footprint.
• Acoustic Dampening: High-volumetric volute engineering drastically reduces hydraulic vibration for whisper-quiet spa filtration.

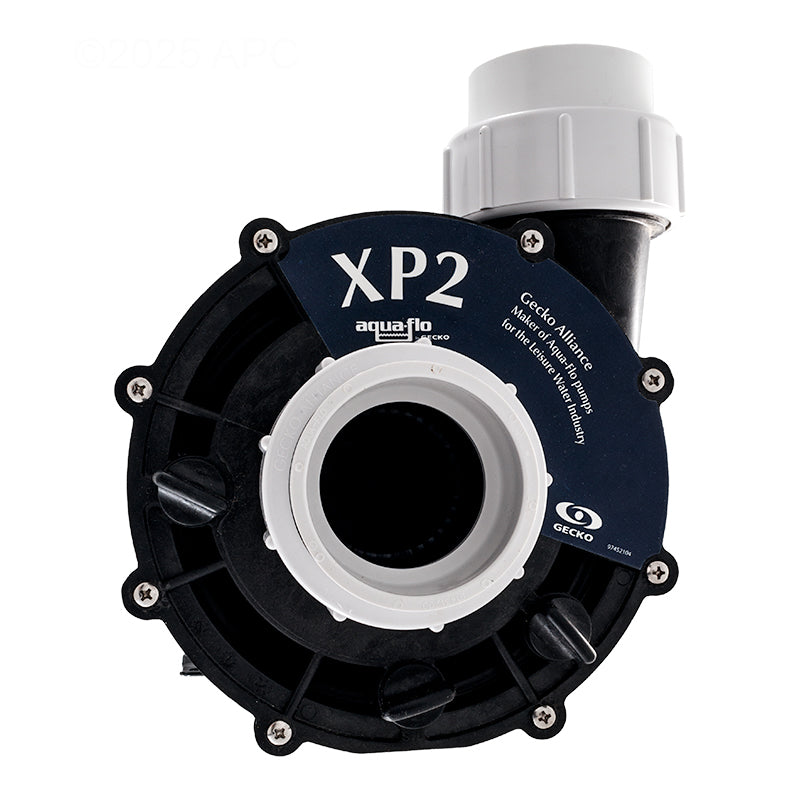

• Rotational Wet-End: Complete volute assembly modifies seamlessly to 4, 6, or 9 o'clock plumbing angles for fast drop-in alignment.
• Premium Viton Seal: Integrated heavy-duty Viton mechanical shaft seal offers superior structural resistance to salt, ozone, and spa chemicals.
• Standard Fitments: Comes with standard 2" MBT compression fittings (measuring approximately 3-1/16" outer thread diameter) with two matching plumbing unions included.
• Warranty Protection: Backed by a comprehensive 2-year manufacturer warranty.

TECHNICAL SPECIFICATIONS

• Part Number: AF061205002040 / 06120500-2040
• Brand: Aqua-Flo by Gecko Alliance
• Horsepower: 2.0 HP (Operational HP)
• Voltage: 230V / 60Hz
• Amperage: 8.4A (High Speed) / 3.0A (Low Speed)
• Speed: 2-Speed (Dual Speed)

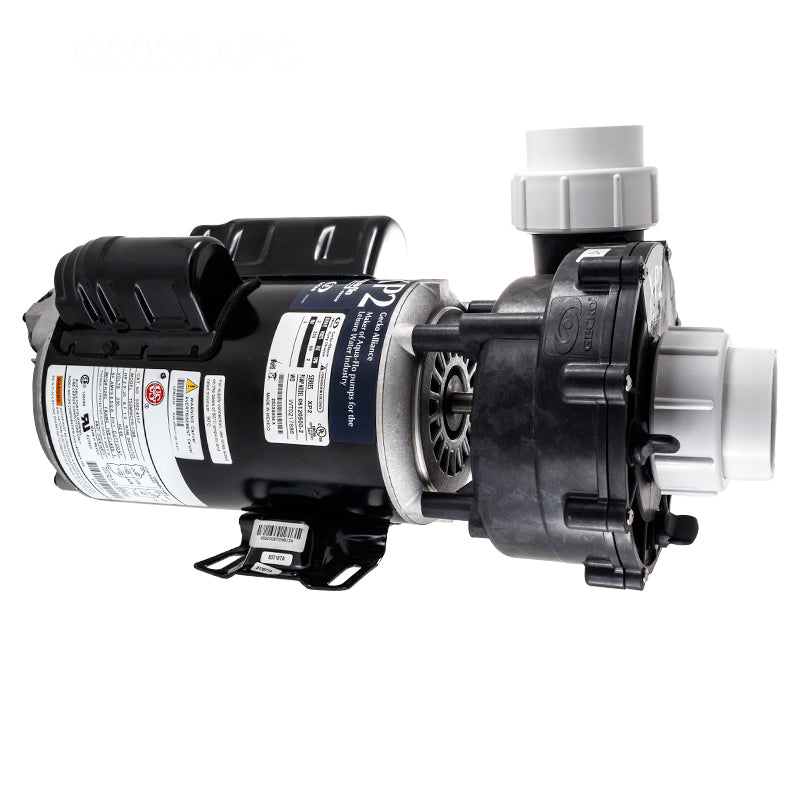

• Motor Frame Size: 48Y Frame (Thru-Bolt Style)
• Intake & Discharge Size: 2" MBT (Male Buttress Thread)
• Discharge Location: Side Discharge
• Flow Rate Capacity: Up to 225 GPM
• Certifications: California Title 20 Compliant, Thermally Protected Motor
• Box Contents: Complete 2HP pump unit, 2x 2" compression union fittings, replacement O-rings
• Warranty: 2 Years
