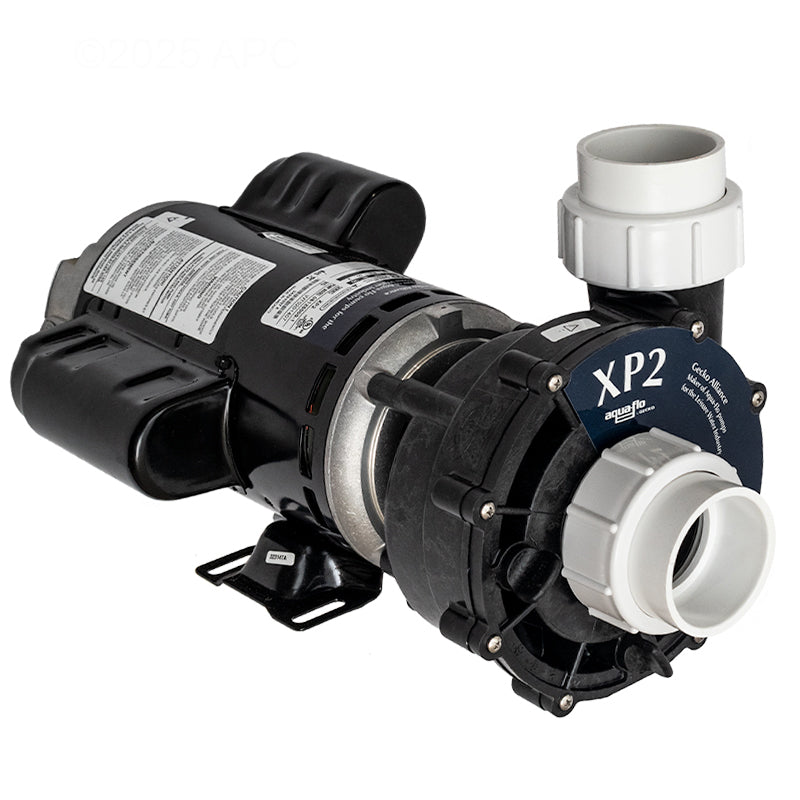

Aqua-Flo Flo-Master XP2 2.5HP 230V 2-Speed Spa Pump (AF061250001040) — Full profile image showing the complete pump assembly with a black motor and black side-discharge wet end housing on a white background.

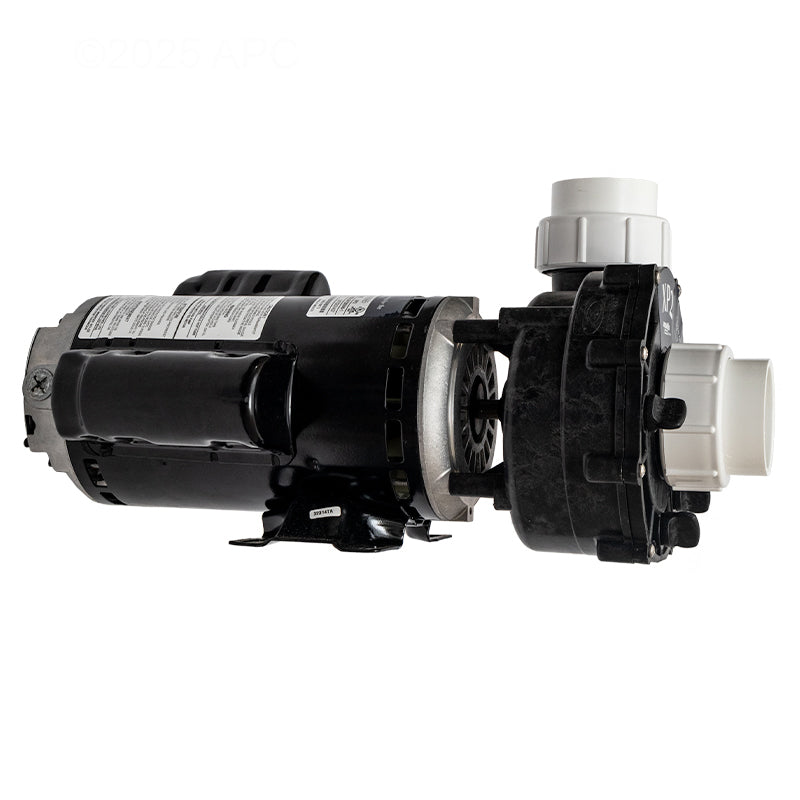

Aqua-Flo Flo-Master XP2 2.5HP 230V 2-Speed Spa Pump (AF061250001040) — Side view focusing on the 48Y frame motor body, mounting base footprint, and side-discharge volute configuration.

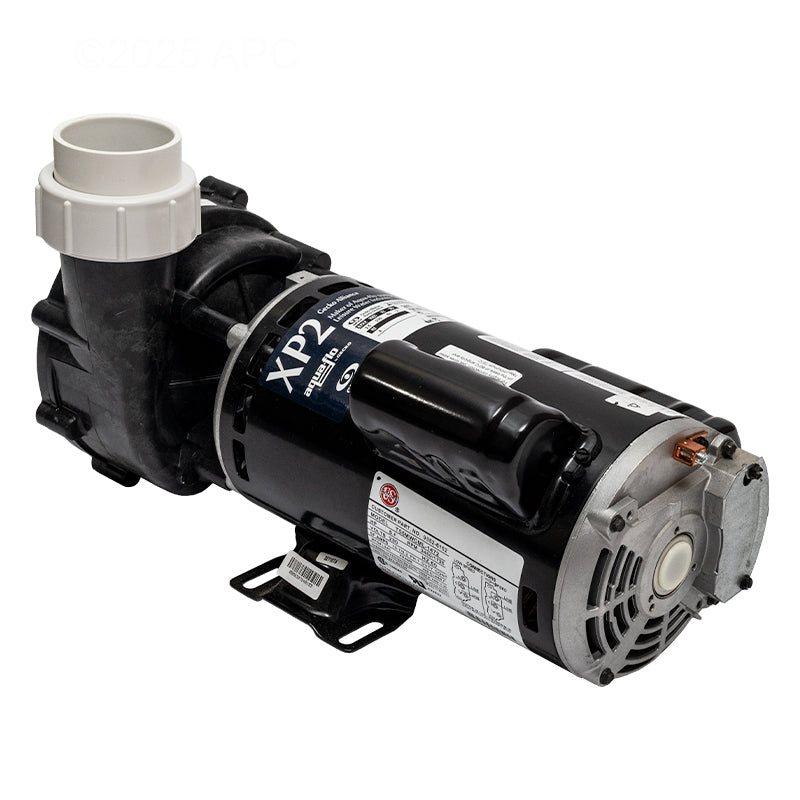

Aqua-Flo Flo-Master XP2 2.5HP 230V 2-Speed Spa Pump (AF061250001040) — Rear angle perspective showing the silver metal motor end cap, through-bolts, and incoming power terminal connection cover.

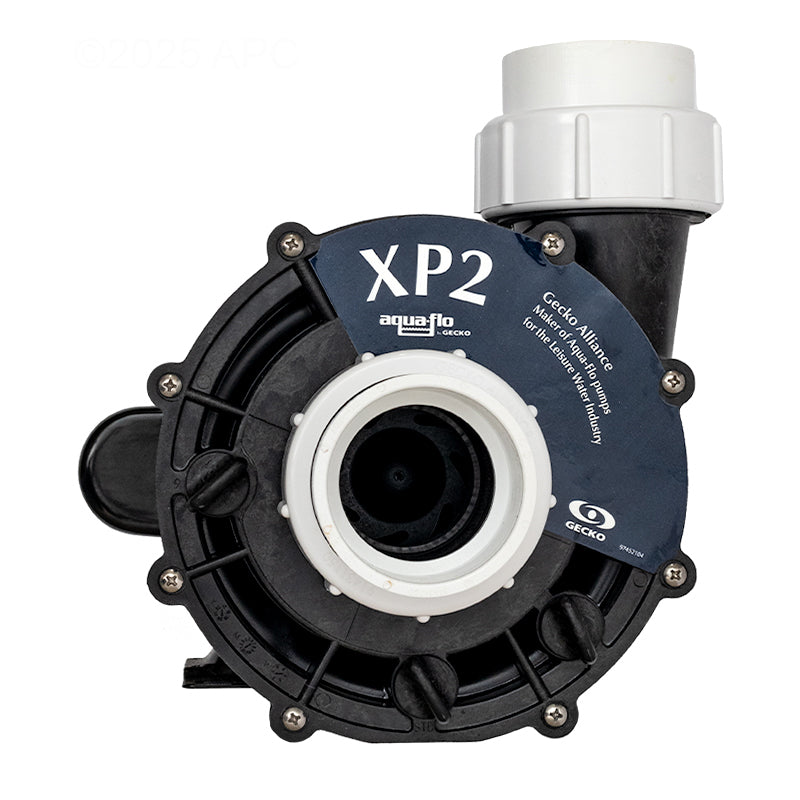

Aqua-Flo Flo-Master XP2 2.5HP 230V 2-Speed Spa Pump (AF061250001040) — Front view of the black wet end volute highlighting the central suction intake port, white plumbing union connection, and the circular XP2 Gecko Alliance branding emblem.

Aqua-Flo Flo-Master XP2 2.5HP 230V 2-Speed Spa Pump AF061250001040

$464.99
$464.99 $519.99
Share
Product Description

The Aqua-Flo Flo-Master XP2 AF061250001040 by Gecko Alliance is a top-of-the-line 2.5 HP, 230V dual-speed spa pump built for the most demanding hot tub applications. The XP2 2.5HP delivers maximum jet performance in a compact 48-frame footprint — the preferred choice for large spas with high jet counts requiring maximum operational flow and pressure. Built with a high-volumetric side-discharge volute and an ultra-durable Viton mechanical seal, it shifts seamlessly between an energy-efficient low speed for filtration/heating and an aggressive high speed for deep-tissue hydrotherapy jet action.

🚩 PRO TIP

This pump is shipped without a factory power cord; you will need to reuse your existing amp cord or purchase a compatible 230V 2-speed cord separately. The high-volumetric wet end can easily be unbolted and rotated 90 degrees to three unique standard positioning angles (4, 6, or 9 o'clock) to drop perfectly into your spa's existing plumbing configurations. When verifying compatibility, always cross-reference the exact label amperage (10.0A High / 2.6A Low) rather than advertised horsepower breakdown alone. Commonly replaces or cross-references as part numbers 06125000-1040, 1-00-0093B, and 4.5 SPL on specific Coleman spa models.

PRODUCT FEATURES

  • Maximum Series Output: Heavy-duty 2.5 HP dual-speed spa pump offering the highest volumetric flow capacity in the Flo-Master XP2 lineup.
  • Plumbing Optimization: Engineered for large hot tubs with intensive jet clusters requiring maximum pressure lines.
  • Quiet Flow Technology: High-volumetric volute engineering isolates hydraulic turbulence for exceptionally quiet operation.
  • Configurable Setup: Wet-end structure adjusts smoothly to multiple side-discharge orientations for broad engineering flexibility.
  • Premium Viton Seal: Equipped with a standard Viton mechanical shaft seal for superior structural defense against chemical wear, ozone, and heat degradation.
  • Standard Fitting Dimensions: Features 2" MBT compression fittings (measuring approximately 3-1/16" outer thread diameter) with two complete union fittings and replacement O-rings included.
  • Manufacturer Protection: Backed by an authoritative 2-year manufacturer warranty.

TECHNICAL SPECIFICATIONS

  • Part Number: AF061250001040 / 06125000-1040
  • Brand: Aqua-Flo by Gecko Alliance
  • Horsepower: 2.5 HP
  • Voltage: 230V / 60Hz
  • Amperage: 10.0A (High Speed) / 2.6A (Low Speed)
  • Speed: 2-Speed (Dual Speed)
  • Motor Frame Size: 48Y Frame (Thru-Bolt style)
  • Intake & Discharge Size: 2" MBT (Male Buttress Thread)
  • Discharge Location: Side Discharge
  • Flow Rate Capacity: Up to 225 GPM
  • Cross-References: 06125000-1040, 1-00-0093B, 4.5 SPL (Coleman Spas), 05625387-2, 05525794-2, 05625287-1
  • Box Contents: Complete 2.5HP pump motor and wet end unit, 2x 2" compression plumbing unions, O-rings
  • Warranty: 2 Years
