Aqua-Flo Flo-Master XP2 1.5HP 115V 2-Speed Spa Pump AF061150001040

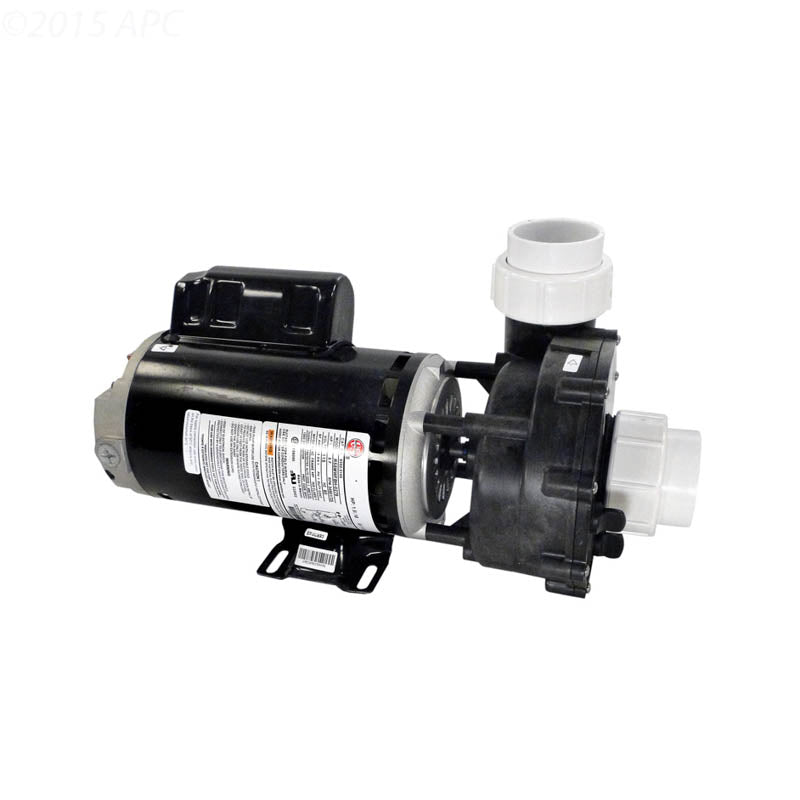

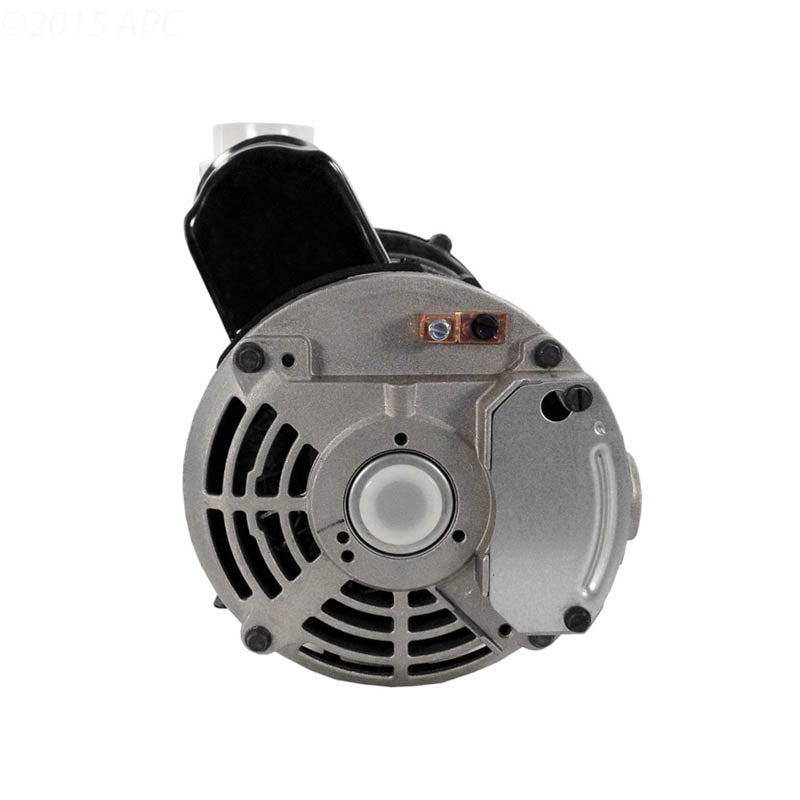

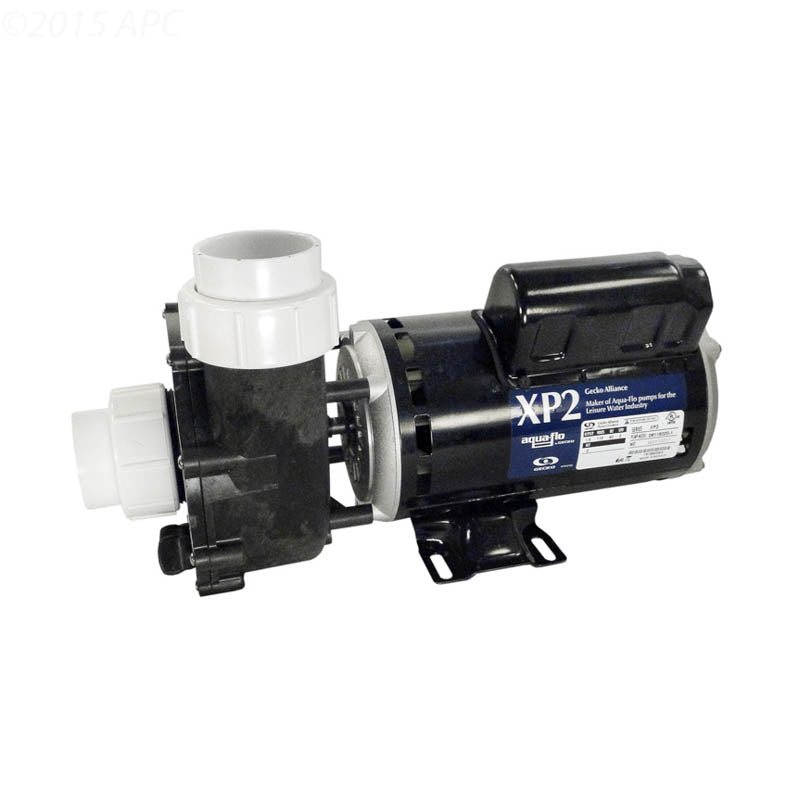

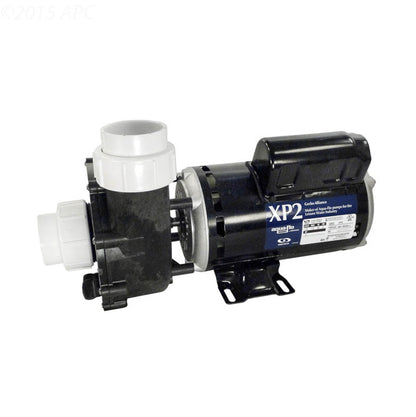

The Aqua-Flo Flo-Master XP2 AF061150001040 by Gecko Alliance is a premium 1.5 HP, 115V dual-speed replacement pump engineered specifically for portable spas, hot tubs, whirlpools, and above-ground pools. Featuring a space-efficient 48-frame design, a high-volumetric side discharge volute, and a durable Viton mechanical seal, this pump delivers maximum hydrotherapy performance with whisper-quiet operation. Its dual-speed operation switches effortlessly between energy-efficient low-speed circulation/heating and high-speed jet therapy activation.

🚩 PRO TIP

This complete spa pump is manufactured without a power cord; you will need to reuse your existing amp cord or purchase a compatible 115V cord separately. To customize your setup, the wet end can easily be rotated to three standard indexing positions (4, 6, or 9 o'clock) by loosening the motor thru-bolts. Always check the operational amperage (13.3A high / 4.1A low) rather than label horsepower alone when replacing an old hot tub pump. Replaces Watkins P/N 1431701-01, 39583, 39583M, and 38944.

PRODUCT FEATURES

• High-Performance Engineering: 48-frame dual-speed spa pump optimized to exceed standard 48-frame flow baselines.
• Dual-Speed Versatility: Ultra-efficient low speed for continuous heating/filtration and a robust high speed for jet therapy.
• Acoustic Dampening: High-volumetric volute engineering ensures minimal acoustic vibration for ultra-quiet hot tub operation.

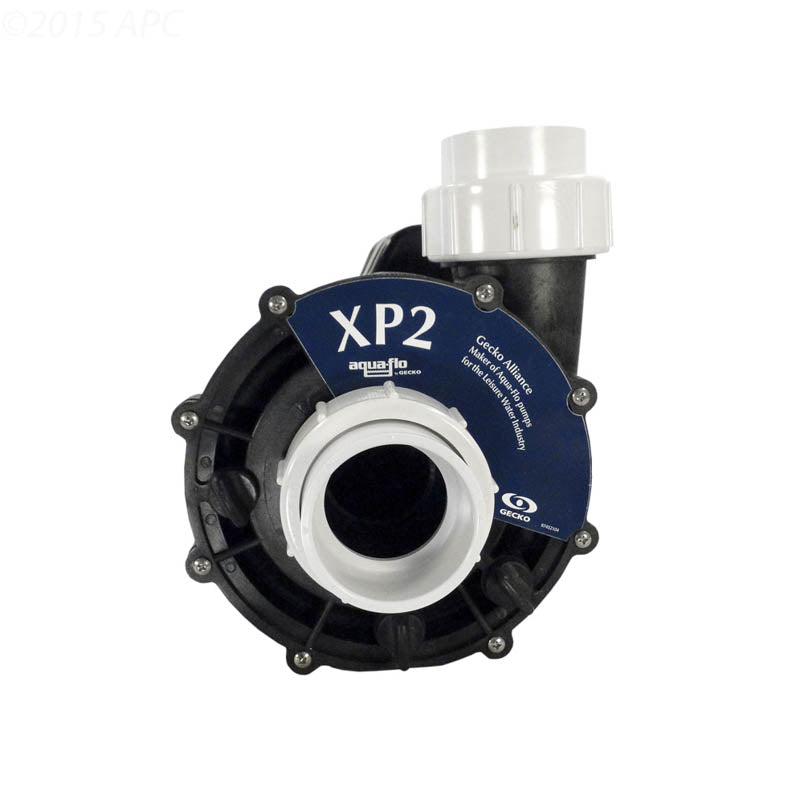

• Rotational Wet-End: Assembly modifies seamlessly to 4, 6, or 9 o’clock configurations to accommodate unique plumbing angles.
• Premium Viton Seal: Offers superior structural defense against chemical wear, ozone, and extreme heat.
• Standard Fitments: Complete with 2" MBT compression fittings (measuring approximately 3" outer thread diameter) for painless union installation.
• Warranty Protection: Backed by an industry-leading 2-year manufacturer warranty.

TECHNICAL SPECIFICATIONS

• Part Number: AF061150001040 / 06115000-1040
• Brand: Aqua-Flo by Gecko Alliance
• Horsepower: 1.5 HP
• Voltage: 115V / 60Hz
• Amperage: 13.3A (High Speed) / 4.1A (Low Speed)
• Speed: 2-Speed (Dual Speed)
• Motor Frame Size: 48Y Frame (Thru-Bolt style)
• Intake & Discharge Size: 2" MBT (Male Buttress Thread)
• Discharge Location: Side Discharge
• Flow Rate Capacity: Up to 125 GPM
• Physical Dimensions: 15-7/8" L x 7-15/16" W x 7-13/16" H
• Box Contents: Complete pump unit, 2x compression union fittings, replacement O-rings
• Warranty: 2 Years
