APC Pump Repair Kit for Jandy JHP & JHPU (GO-KIT77 / APCK1181)

The APC APCKIT77 / APCK1181 Pump Repair Kit (GO KIT 77) is a complete seal and O-ring service kit engineered for Jandy JHP and JHPU series pool pumps. Manufactured by APC (Aladdin Pool & Spa), this kit bundles every critical wear component needed for a single pump rebuild — restoring leak-free performance and extending pump life without the cost of full replacement.

🚩 PRO TIP

Always replace all seals and O-rings at the same time — even if only one is visibly worn. Mixing old and new rubber components creates uneven sealing surfaces that lead to repeat leaks. Lubricate every O-ring with a pool-grade silicone lubricant (never petroleum-based grease) before reassembly.

PRODUCT FEATURES

• Complete rebuild kit for Jandy JHP and JHPU series pool pumps
• Includes shaft seal, coupling nut O-ring, diffuser O-rings (3/4 HP–2.5 HP & 3 HP), and lid O-ring
• Chemical-resistant rubber components rated for chlorine, salt, and pool treatment chemicals
• Precision-molded seals ensure a tight, leak-free fit on first installation
• Suitable for residential and light commercial pool applications
• Restores pump efficiency and eliminates suction-side air leaks
• DIY-friendly — installs with standard hand tools in 1–2 hours
• APC GO KIT 77 — the industry-standard service kit for Jandy JHP/JHPU pumps

TECHNICAL SPECIFICATIONS

• Brand: APC (Aladdin Pool & Spa)
• APC Part Number: APCK1181
• Kit Model: GO KIT 77 / APCKIT77
• UPC: 842524113404
• Compatible Pumps: Jandy JHP, Jandy JHPU (all horsepower ratings)

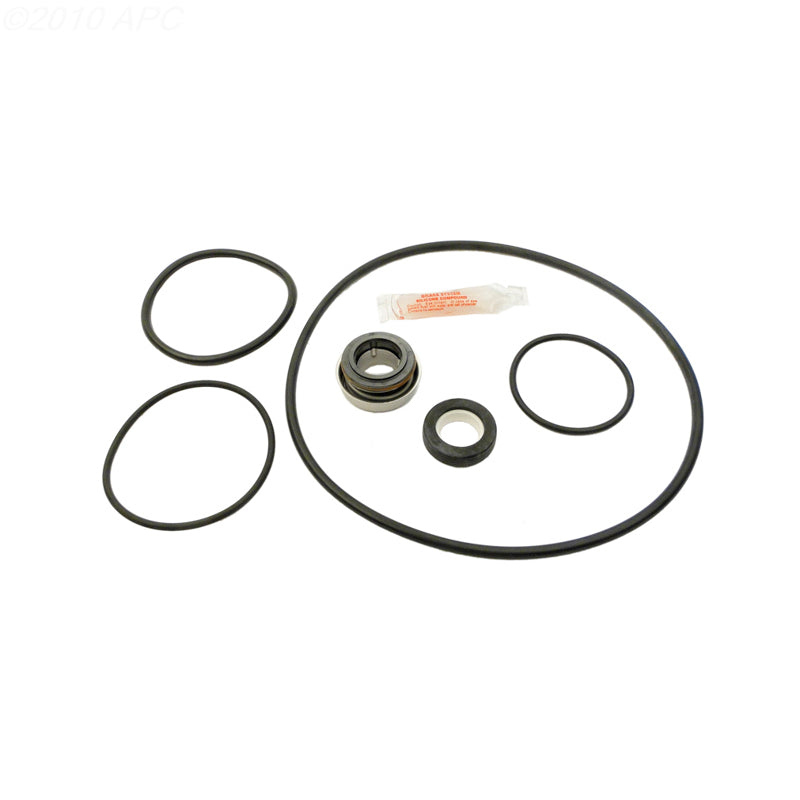

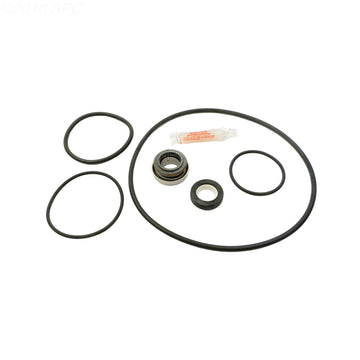

• Kit Contents:
  • 1× Pump Shaft Seal (replaces Jandy R0338200)
  • 1× Coupling Nut O-Ring (replaces Jandy R0339600)
  • 1× Diffuser O-Ring 3/4–2.5 HP (replaces Jandy R0058701)
  • 1× Diffuser O-Ring 3 HP (replaces Jandy R0558705)
  • 1× Lid O-Ring (replaces Jandy R0555400)
• Material: Chemical-resistant rubber
• Weight: 0.25 lb
• Cross-References: GO-KIT77, GO KIT 77, APCKIT77, APCK1181, Jandy R0338200, R0339600, R0058701, R0558705, R0555400

Frequently Asked Questions

• What are the signs I need this kit? You should install this kit if you notice water pooling under your pump motor, air bubbles in your pump basket, or if you are replacing the pump motor.

• Does this kit include the shaft seal? Yes, it includes the heavy-duty pump shaft seal (replacing Jandy R0338200) along with all necessary O-rings.

• Will this work on a Jandy PlusHP? Yes, the Jandy JHP and JHPU series are commonly referred to as the Jandy PlusHP pumps. This kit fits all horsepower ratings in that line.
