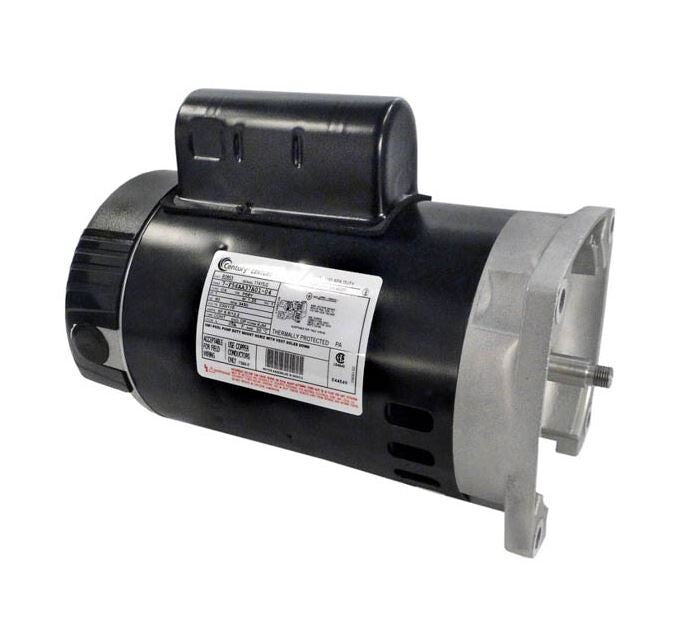

AO Smith Century 1.5HP 230/115V Single Speed Square Flange Pool Motor -B2854V1

The AO Smith Century B2854V1 is a 1.5 HP premium replacement motor engineered for efficiency and long-term reliability. Featuring a 56Y Square Flange design, this motor is the "gold standard" replacement for many high-performance pumps, including the Pentair WhisperFlo, Challenger, and Sta-Rite Max-E-Glas series. Its dual-voltage flexibility and rugged steel construction make it a top choice for both residential and commercial pool systems.

🚩 PRO TIP: To ensure a leak-free installation and protect your new motor’s bearings, always install a new Shaft Seal when swapping motors. We also recommend applying a small amount of Aladdin Magic Lube to your bracket O-ring for a perfect seal.

PRODUCT FEATURES:

• POWERFUL 1.5 HP PERFORMANCE: Delivers high-torque circulation to keep even the largest pools crystal clear.
• VERSATILE DUAL VOLTAGE: Easily toggles between 115V and 230V, allowing it to adapt to almost any existing pool equipment pad.

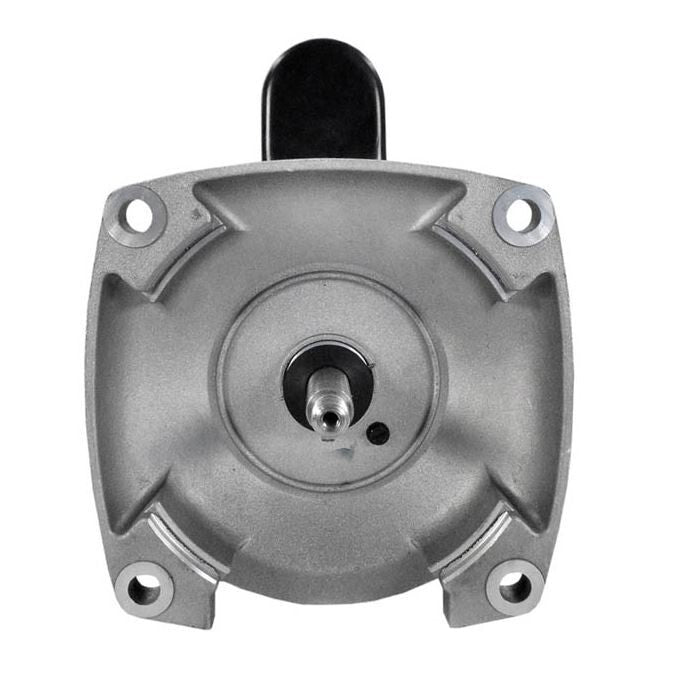

• SQUARE FLANGE (56Y FRAME): Features the industry-standard 4-bolt square mounting pattern for a precise, direct bolt-on fit.
• STAINLESS STEEL SHAFT: Includes a corrosion-resistant threaded shaft designed to withstand the harsh environment of salt and chlorine pools.

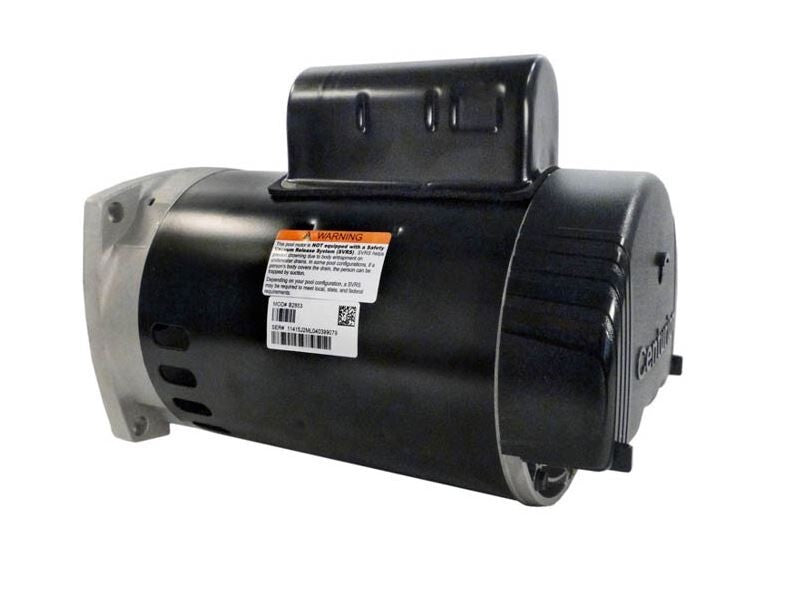

• DURABLE OPEN DRIP-PROOF (ODP) DESIGN: Engineered with advanced ventilation to keep internal components cool, significantly extending the motor's lifespan.

TECHNICAL SPECIFICATIONS:

• Brand: AO Smith / Century
• Model: B2854V1 (Centurion Series)
• Horsepower: 1.5 HP
• Voltage: 115V / 230V
• Frame: 56Y (Square Flange)
• RPM: 3450
• Service Factor: 1.10

WHY SHOP WITH AL'S COOL POOL STORE?

• Quality Assured: We only stock elite brands like AO Smith (Century) to ensure your equipment is built to last.
• In-Stock & Ready: With hundreds of units in our warehouse, we ship fast so your pool downtime is minimal.
• Expert Support: Not sure if this fits your pump? Our team knows pool motors inside and out and is ready to help.
• Satisfaction Guaranteed: We stand behind every motor we sell—your pool's performance is our top priority.
